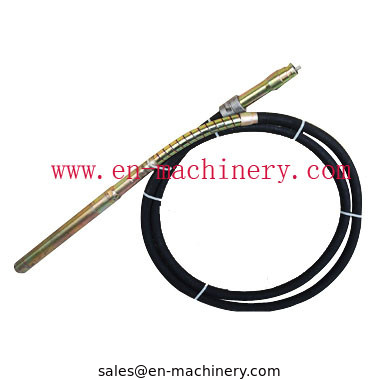

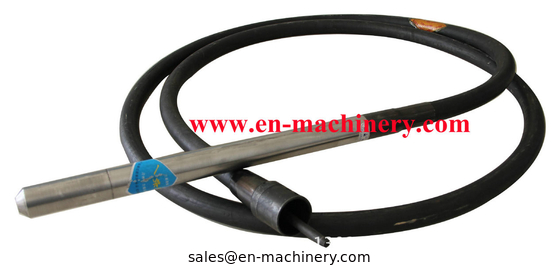

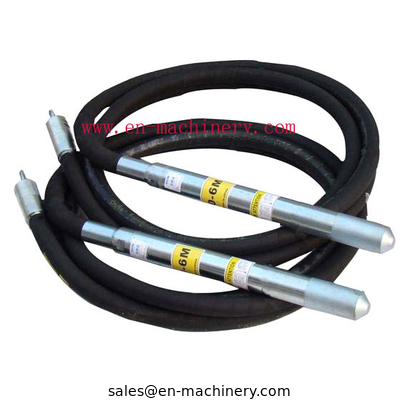

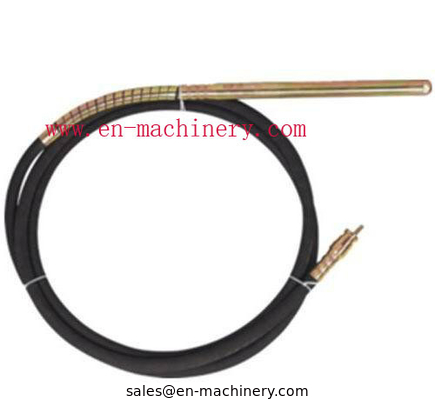

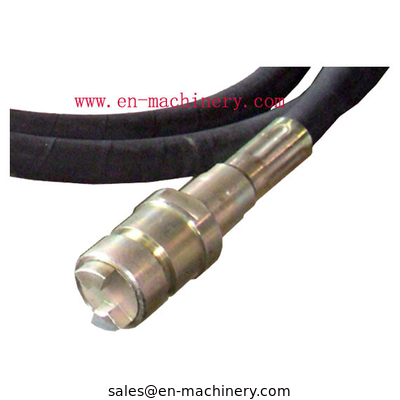

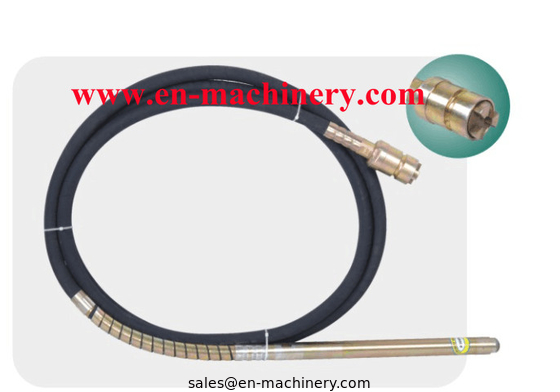

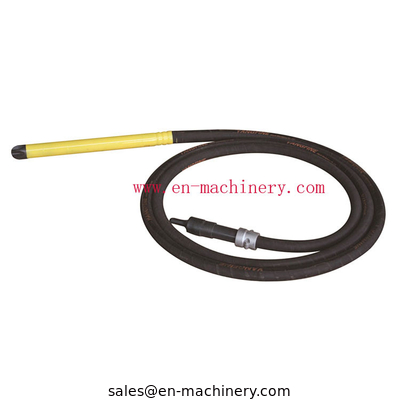

Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft

China Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier
Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft supplier

Large Image :  Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft

Product Details:

Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN series

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: $5.00/pc
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or LC, Western Union, MoneyGram, D/A, D/P
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Type: Japanese Type,Indian Type,Dynapac Type,Austrilia Type Vibrator Head: 25mm,28mm,32mm,35mm,40mm,50mm,60mm,70mm
Length: 1m-12m Standard Length: 6m
Flexible Shaft Dia: 8mm,10mm,13mm Rubber Hose Dia: 30mm,36mm

 Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft
Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft
Discount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaftDiscount Electric Plug-in Internal Concrete Vibrator Motor,Plug type pine type concrete vibrator,concrete vibrator shaft
Description: flexible shaft ,concrete vibrator shaft

Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
Technical Parameters



It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.


Model


Outer.dia


Inner.dia


Rubber tensile


Adhensive of inner rubber

Steel belt material


Steel belt hardness


Rubber hardness


Steel wire braid


Min.bending radius(mm)


JYG16


16mm


9mm

>1000 N/

50-60
N/

40Mn-65Mn

20HRC-30HRC

50-62


1


75

JYG20
20mm


10mm


1


80


JYG22


22mm


10mm


2


80

JYG24
24mm


13mm

60-65

20Mn-65Mn

75-80

according to the
demand


100


JYG30


30mm


16mm


120

JYG32


32mm


18mm


150

JYG36


36mm


20mm


200

JYG42
42mm


25mm


250



Diameter (mm)

Tolerance (mm)

Number of Layers

Loading Moment
(N · m)
(Sample 500mm Long)

Weight
(kg/ 100m)

2.0

+0.02
-0.02

3/5

0.8

1.8

2.5

3/5

1.0

2.8

3.2

3/5

1.3

4.6

3.8

3/5

1.5

6.5

5.0

+0.00
-0.05

3/4/5

1.8

11.3

6.0

3/4/5

2.4

16.2

6.5

4/5/7

2.9

18.7

8.0



4/5/6/7

7.5

28.8

10

4/5/6/7

22.5

45.5

12

4/5/6/7

39.0

66.5

13

4/5/6/7

50.5

77.5

16

4/5/6/7

115.0

114

18

4/5/6/7

160

145

The flexible shafts not listed in the chart can be customized


Welcome to visit factory warmly. can send samplefor testing in advance.
can supply OEM service with your own logo.
Supply high quality & the most competitive price for you.


You may interested in other products: concrete vibrator,mini concrete mixer
