Flexible Shaft Internal Vibrators with Direct Electric Motor Connection

10 pcs
MOQ
$5 per pc
Price
Flexible Shaft Internal Vibrators with Direct Electric Motor Connection
Features Gallery Product Description Request A Quote
Features
Specifications
Vibrating Frequency: 220-260HZ
Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m
Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs
Overall Dimension: 1376*80*138mm
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN
Payment & Shipping Terms
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs/month
Product Description

Flexible Shaft Internal Vibrators with Direct Electric Motor Connection



Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft



Functional Description:

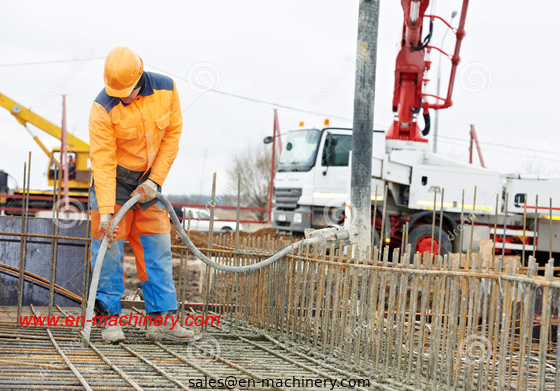

 Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.





Main Features:



1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.


Model JKV25 JKV28 JKV32 JKV35 JKV38 JKV45 JKV50 JKV60 JKV70
Dia. of vibrating head 25mm 28mm 32mm 35mm 38mm 45mm 50mm 60mm 70mm
Dia. of hose(outside) 25mm 25mm 30mm 30mm 30mm 30mm 36mm 36mm 36mm
Dia. of shaft 8mm 8mm 10mm 10mm 10mm 10mm 13mm 13mm 13mm
Total length 1~6m 1~6m 4~8m 1~8m 4~8m 4~10m 4~12m 4~12m 4~12m
Weight (6m) 10kg 10kg 11kg 12kg 13kg 15kg 19kg 23kg 25kg
Packing size (6m) 77x66x5.5cm 77x66x7cm
Packing way carton box
Coupling type Chinese type,Japanese type.Malaysian type,Australian type.etc.
Hs Code



Model ZX35 ZX50 ZX70 ZX28
Diameter(mm) 35 50 70 28
Vibrating Frequency(Hz) 183 183 183 183
Outside Dia of Flexible Hose(mm) 30 36 36 30
Dia of Flexible Shaft 10 13 13 10
Packing Way carton carton carton carton
Packing Size(mm) 750*750*55 750*750*55 750*750*70 750*750*55
Length(m) 1to12 1to12 1to12 1to12
Max. Vibration Force(KN) 5.293 6.251 7.157 4.846
Vibrating Amplitude(mm) 1.15 1.21 1.32 1.11
Available motor or engine Electric Motor, Gasoline Engine, Diesel Engine



Flexible Shaft Internal Vibrators with Direct Electric Motor Connection 0

Flexible Shaft Internal Vibrators with Direct Electric Motor Connection 1Flexible Shaft Internal Vibrators with Direct Electric Motor Connection 2
