Chain Pulley block chain block Mini Machine 3m 1 Ton Chain Block

1 set
MOQ
$10 per pc
Price
Chain Pulley block chain block Mini Machine 3m 1 Ton Chain Block
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Chain Pulley Block
Capacity: 0.75T-10T
Standard Lift: 1.5M
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: YT
Payment & Shipping Terms
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 sets/month
Product Description

Chain Pulley block chain block Mini Machine 3m 1 Ton Chain Block



Manual lever hoist in the structural design and operational performance, has ten major characteristics:





-The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction.



- High quality materials ensure light weight without infringing reliability.



- Low own weight, small mounting sizes and small lever force at full load.



- Asbestos free brake, holding load at any desired height.



- Top & Bottom hooks are fitting with safety latches as standard.



- The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason, free chains can not be done when the hoist is under load.



- Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.



- The hoist is fitted with high grade alloy load chain.



- Complies with EC Council Directive 2006/42/EC Machinery, ASME B30, AS 1418.2.



- Over load protection device available upon request .

Chain hoist,chain block in vital yellow color

Modle 2-075B 2-150B 2-300B 2-600B 2-900B
Capacity                                 TONS 0.75 1.5 3 6 9
Standard lift                               M 1.5 1.5 1.5 1.5 1.5
Running test load                        KN 11 22 44 73.5 110
Headroom(drawn close up) Hmin    MM 315 365 490 620 800
Effort required to lift max. load       N 134 196 324 343 357
No. of falls of load chain 1 1 1 2 3
Load chain                                MM 6×18 8×24 10×30 10×30 10×30
Length of lever handle                 MM 288 418 418 418 418
Dimensions(mm) A 147 178 203 203 203
B 87 105 110 110 110
C 126 146 193 235 337
E 26 31 40 45 57
Net weight                                 KG 7 11 20 30 54





Features



1.This type lever hoist is a kind of portable and versatile hand-operate loading and pulling appliance, appliance, which is capable of being applies in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fitting of wires, assembling and welding etc



2. It has exceptional features particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.





Advantage:



1. OEM service

2. Factory competitive price and good quality

3. Test one by one

4. 24hours/7days at service

5. Compact, lightest weight, safe and reliable
6. Components and parts apply used universally,strong compatibility
7. Easy maintenance
8. Easy operation, accurate lifting steady operation

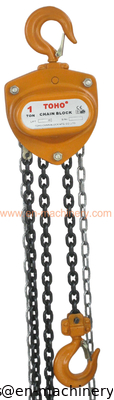

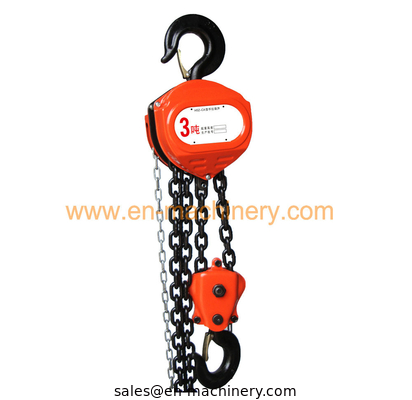

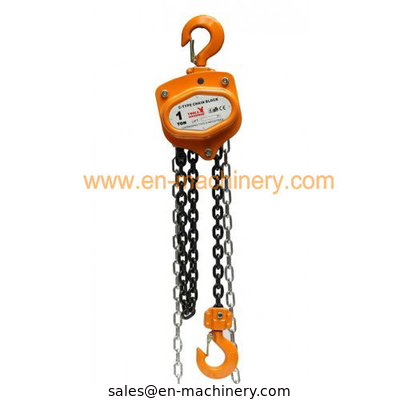

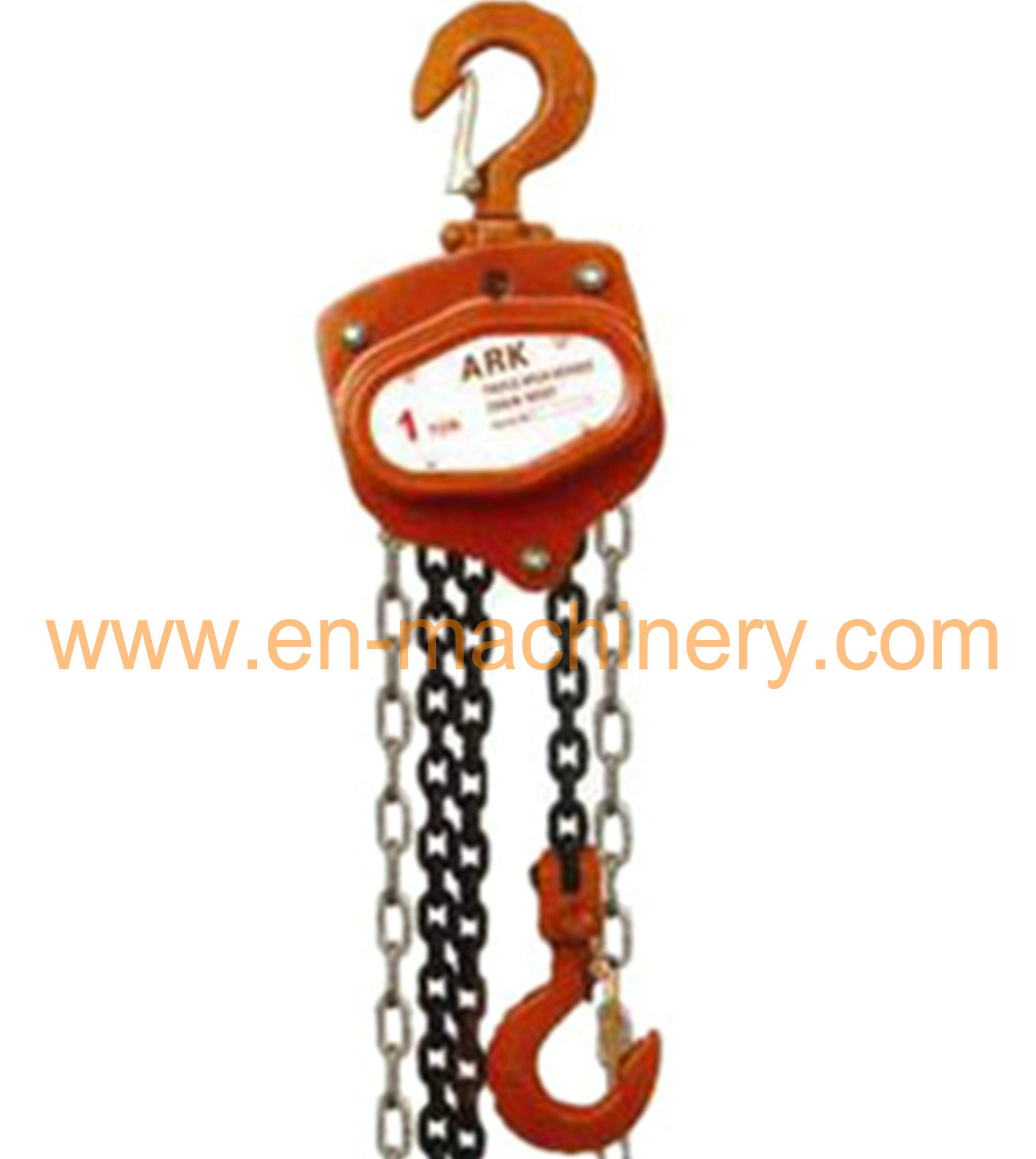

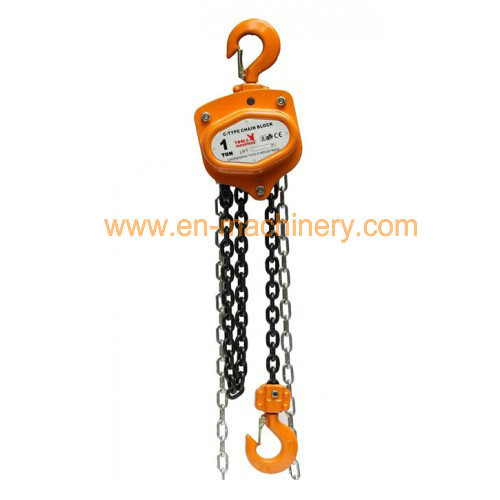

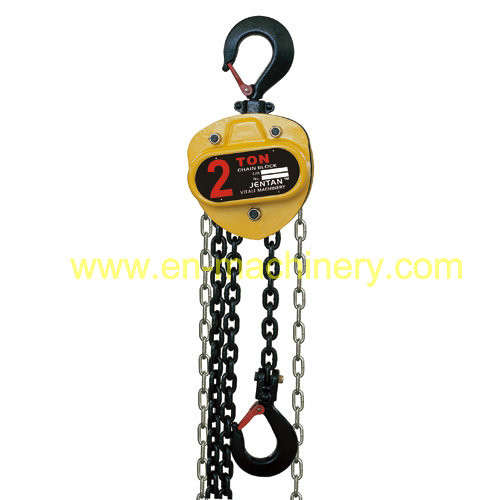

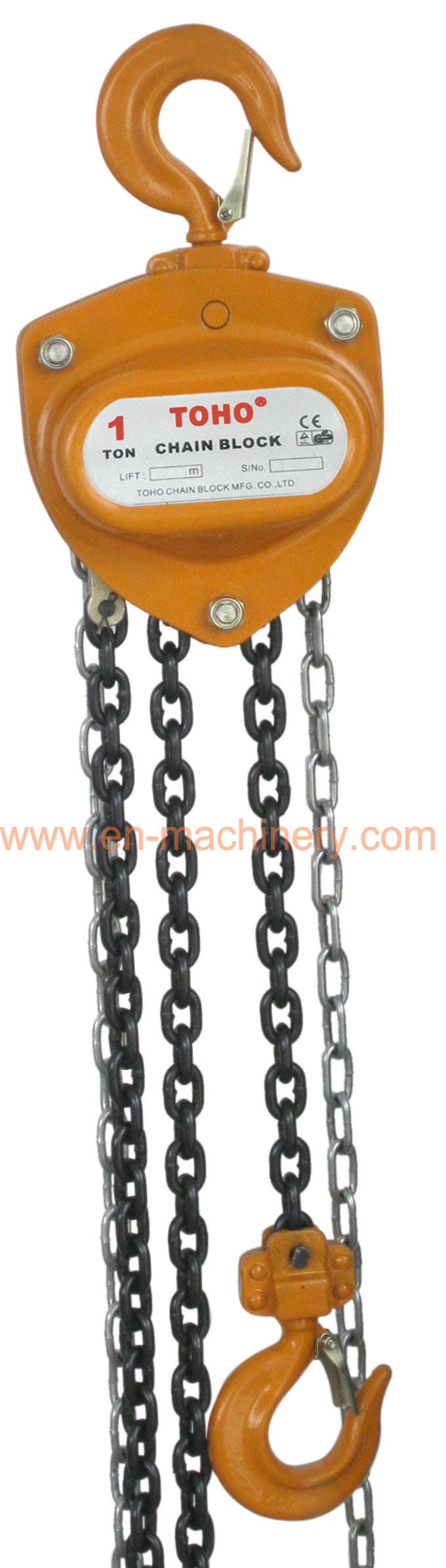

Chain Pulley block chain block Mini Machine 3m 1 Ton Chain Block 1Chain Pulley block chain block Mini Machine 3m 1 Ton Chain Block 2Chain Pulley block chain block Mini Machine 3m 1 Ton Chain Block 3
