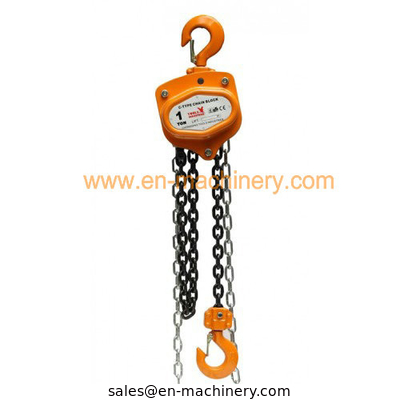

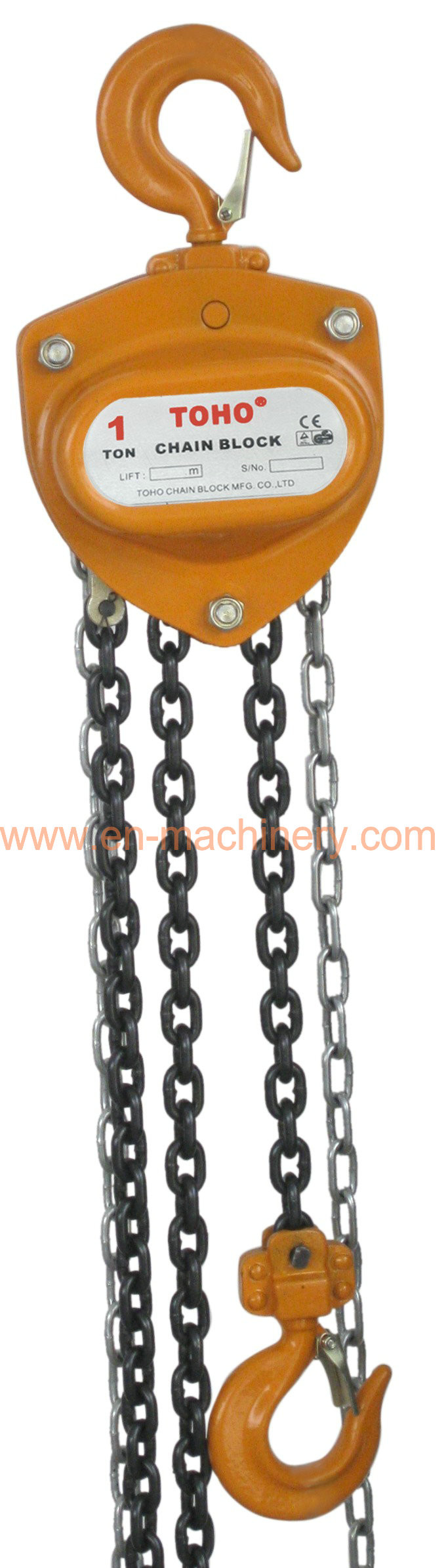

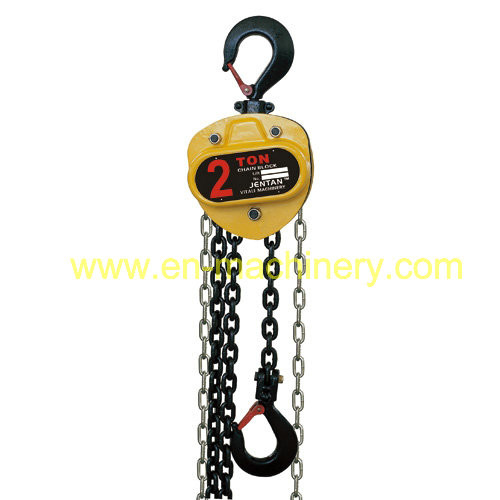

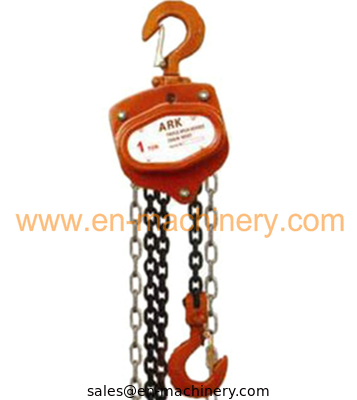

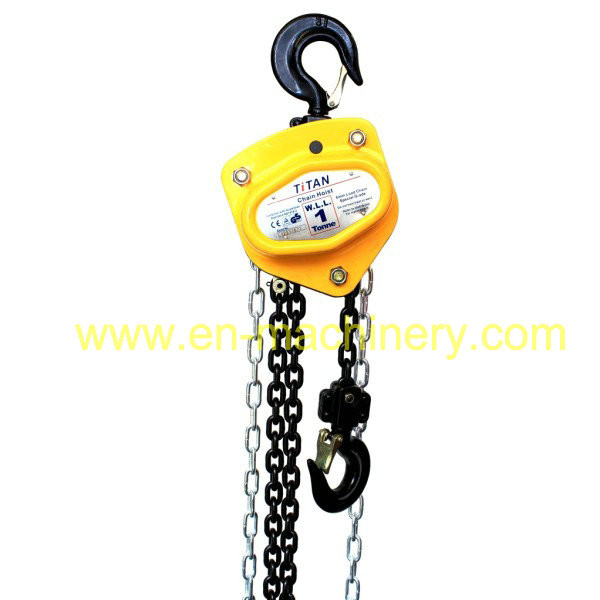

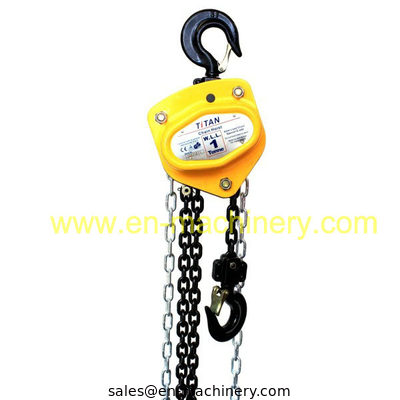

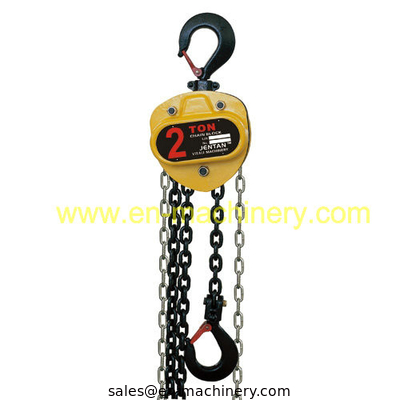

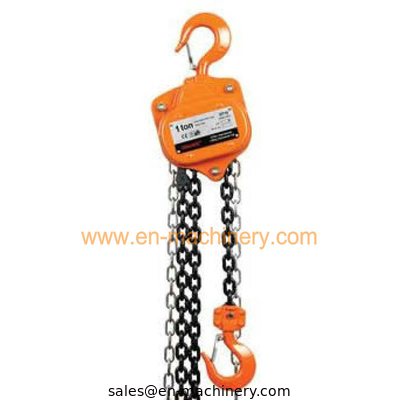

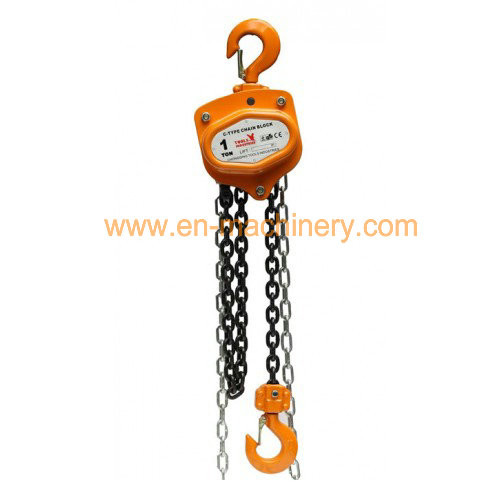

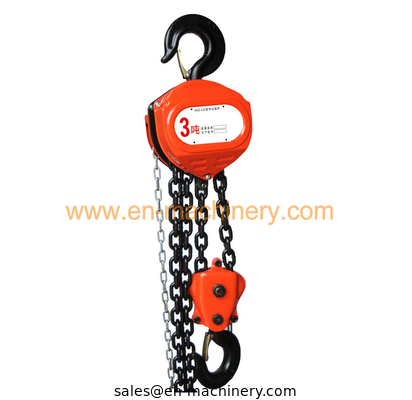

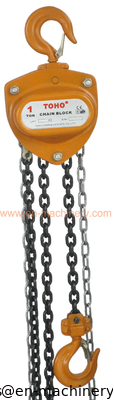

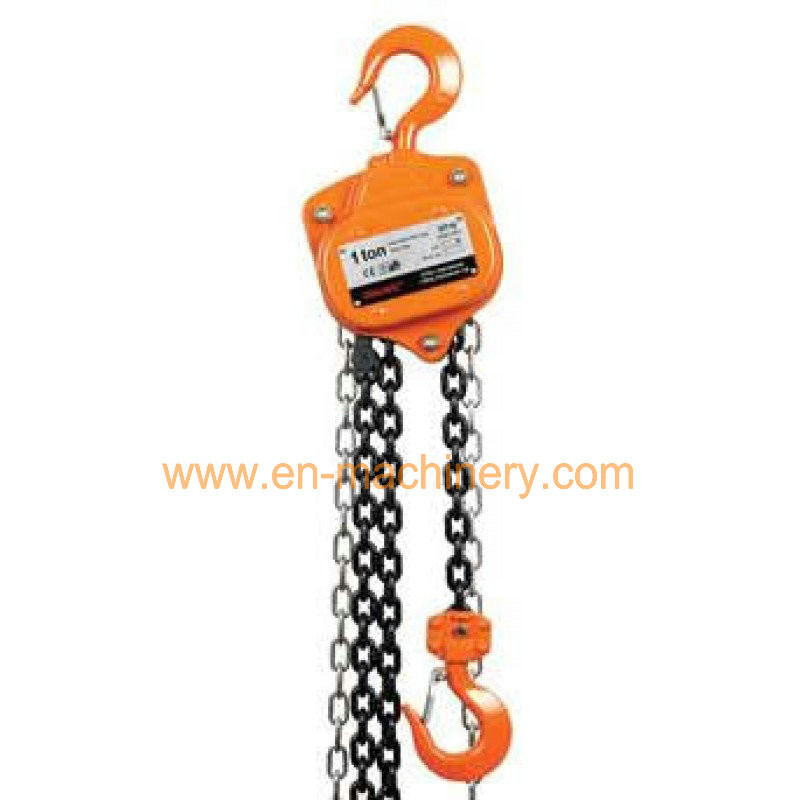

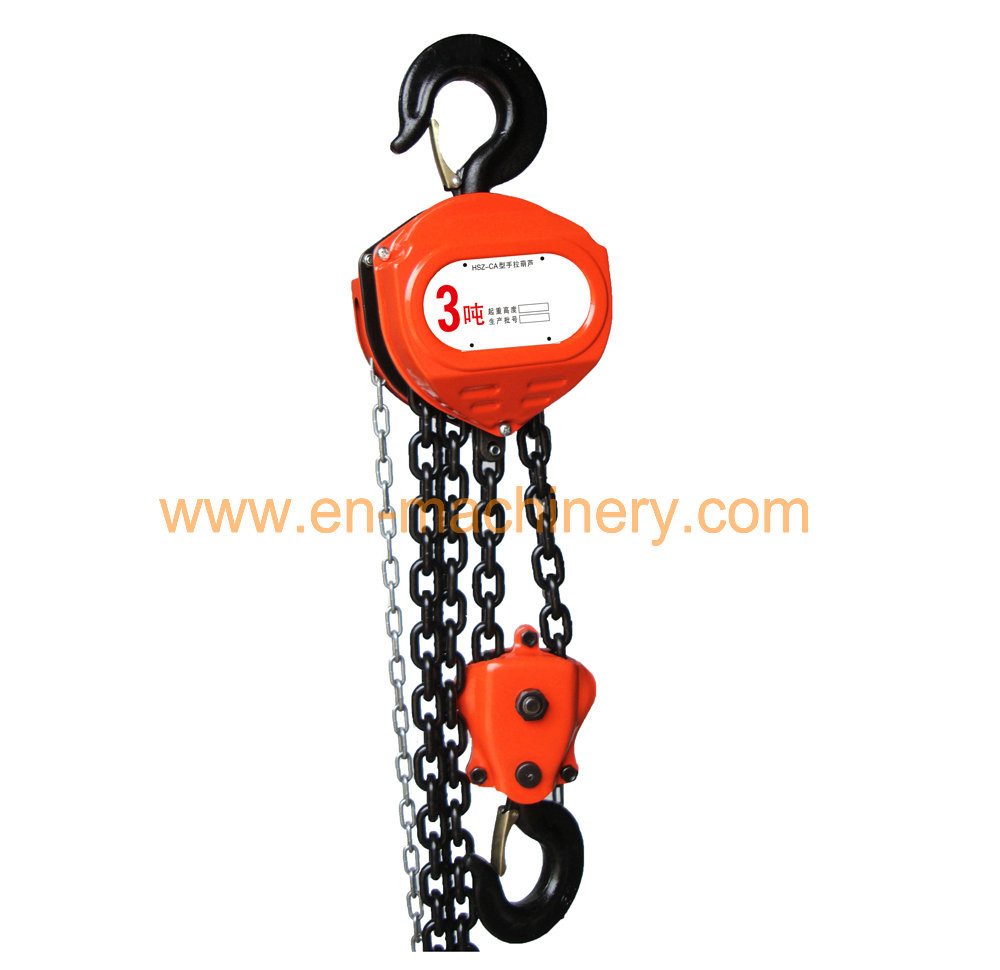

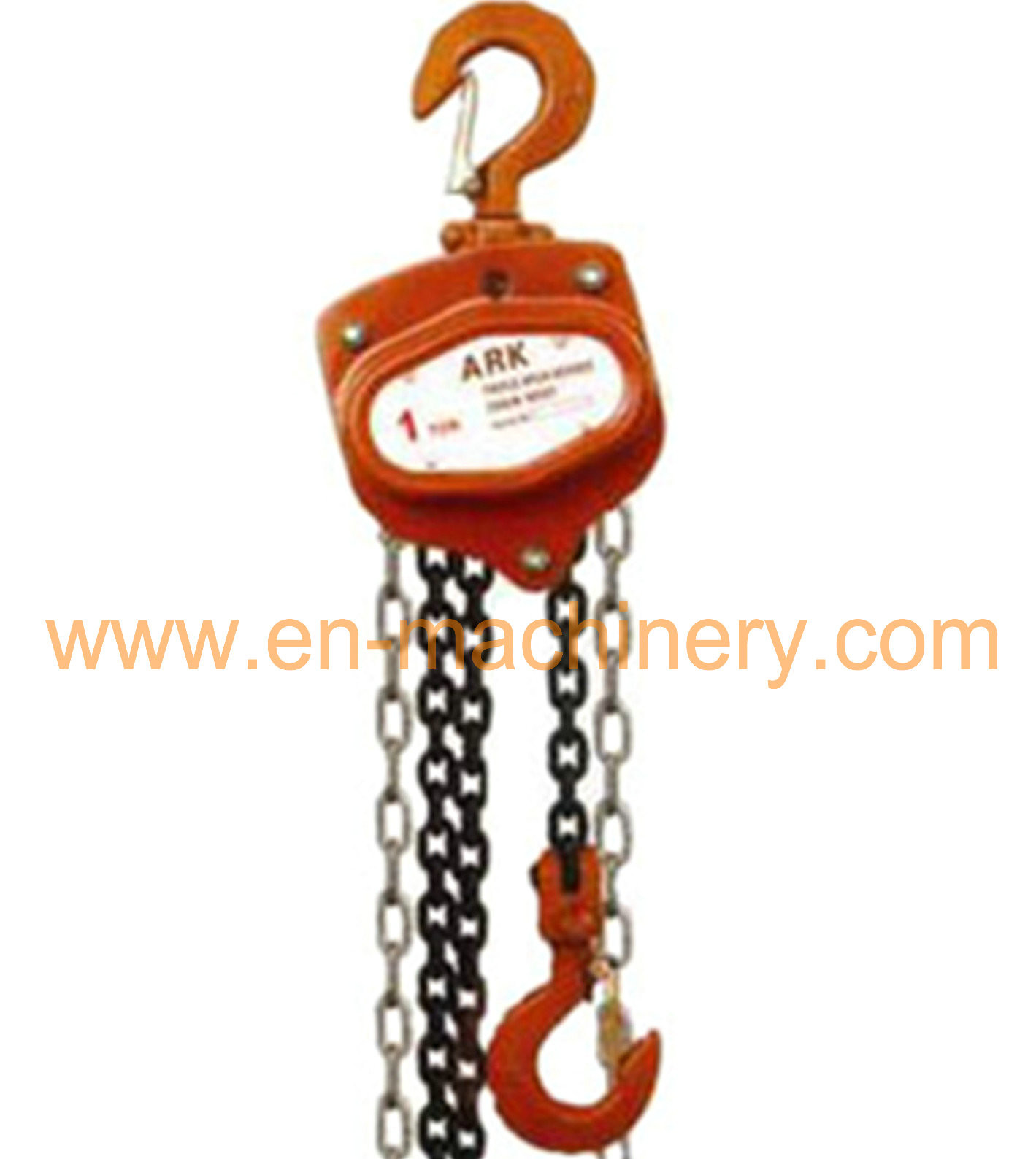

Chain Hoist, Chain Block,Chain Pulley Hoist with Different Capacity 0.5-20Tons
Manual lever hoist in the structural design and operational performance, has ten major characteristics:
-The ratchet lever hoist features compact design and robust, deep drawn, stamped steel construction.
- High quality materials ensure light weight without infringing reliability.
- Low own weight, small mounting sizes and small lever force at full load.
- Asbestos free brake, holding load at any desired height.
- Top & Bottom hooks are fitting with safety latches as standard.
- The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to tension the chain. For safety reason, free chains can not be done when the hoist is under load.
- Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
- The hoist is fitted with high grade alloy load chain.
- Complies with EC Council Directive 2006/42/EC Machinery, ASME B30, AS 1418.2.
Modle | 2-075B | 2-150B | 2-300B | 2-600B | 2-900B | |
Capacity TONS | 0.75 | 1.5 | 3 | 6 | 9 | |
Standard lift M | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
Running test load KN | 11 | 22 | 44 | 73.5 | 110 | |
Headroom(drawn close up) Hmin MM | 315 | 365 | 490 | 620 | 800 | |
Effort required to lift max. load N | 134 | 196 | 324 | 343 | 357 | |
No. of falls of load chain | 1 | 1 | 1 | 2 | 3 | |
Load chain MM | 6×18 | 8×24 | 10×30 | 10×30 | 10×30 | |
Length of lever handle MM | 288 | 418 | 418 | 418 | 418 | |
Dimensions(mm) | A | 147 | 178 | 203 | 203 | 203 |
B | 87 | 105 | 110 | 110 | 110 | |
C | 126 | 146 | 193 | 235 | 337 | |
E | 26 | 31 | 40 | 45 | 57 | |
Net weight KG | 7 | 11 | 20 | 30 | 54 |
Features
1.This type lever hoist is a kind of portable and versatile hand-operate loading and pulling appliance, appliance, which is capable of being applies in electricity, mines, ship-buildings, construction sites, transports and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fitting of wires, assembling and welding etc
2. It has exceptional features particularly for pulling in every limited narrow places in the upper air high above the ground and at any angles.
Advantage:
1. OEM service
2. Factory competitive price and good quality
3. Test one by one
4. 24hours/7days at service
5. Compact, lightest weight, safe and reliable
6. Components and parts apply used universally,strong compatibility
7. Easy maintenance
8. Easy operation, accurate lifting steady operation
