Product Details:
Payment & Shipping Terms:
|
| Engine: | Honda,Robin | Power: | 5-6HP |
|---|---|---|---|
| Compaction Depth(mm): | 150-180 | Working Speed(m/min): | 20-25 |
| Size(mm): | 820*350*800 |
Construction Machinery from China supplier Power Trowel with CE

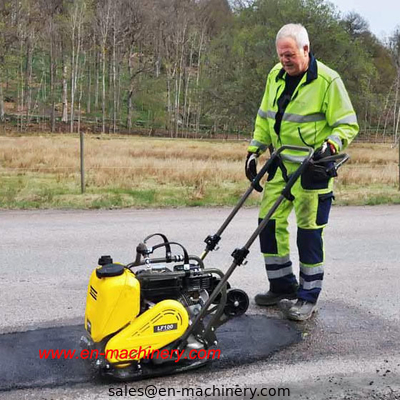

Plate compactoris ideal for sand, gravel and mixed soils in narrow trenches and along foundations, walls and abutments.
I will response within 24 hours and our products have 6 months warranty and lifetime maintenance. We can do OEM /ODM order
Features
1) Low maintenance
2) Less time and less cost for repaire. Reduce vibration of upper engine and handle
3) Straight handle is also available
4) Seald belt cover prevents sand and soil
Certifications:
European CE, ISO 9001:
We can do OEM orders.
| Model | CD60-1 | CD60-2 | CD60-3 | CD80-1 | CD80-2 | CD90 | CD100-1 | CD100-2 | CD120 | CD160 |
| engine(optional) | Honda | Robin | Lifan | Honda | Robin | Lifan | Honda | Honda | Robin | Lifan |
| power | 5.0-6.5HP | 5.0-6.5HP | 3.0KW | 5.0-6.5HP | 5.0-6.5HP | 5-7.5HP | 5.0-9.0HP | 5.0-9.0HP | 5.0-9.0HP | 5.0-9.0HP |
| impact force(KN) | 11 | 11 | 10.5 | 12 | 13 | 15 | 17 | 17 | 20 | 25 |
| speed(RPM) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| compaction depth(mm) | 150 | 150 | 150 | 180 | 180 | 200 | 200 | 200 | 200 | 300 |
| working speed(m/min) | 20 | 20 | 25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 20-25 | 15-20 |
| weight(kg) | 60 | 60 | 70 | 75 | 80 | 90 | 90 | 90 | 100 | 120 |
| size(mm) | 820*350*800 | 820*350*800 | 820*350*750 | 850*400*800 | 850*400*800 | 900*450*800 | 900*450*800 | 900*450*800 | 1200*480*900 | 800*500*1050 |
