Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose

10 pcs
MOQ
$5.00 per pc
Price
Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose
Features Gallery Product Description Request A Quote
Features
Specifications
Vibrating Frequency: 220-260HZ
Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m
Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs
Overall Dimension: 1376*80*138mm
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN
Payment & Shipping Terms
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, Western Union, MoneyGram, D/P, D/A
Supply Ability: 20000 pcs/month
Product Description

Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose

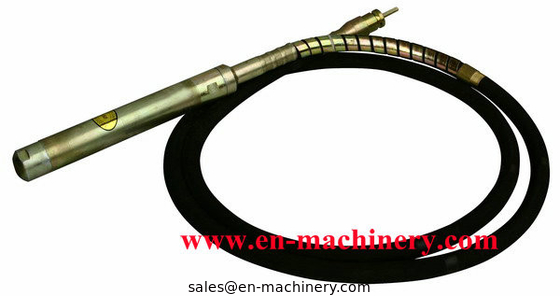

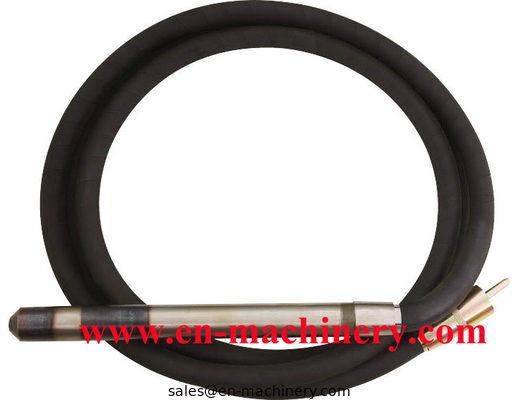

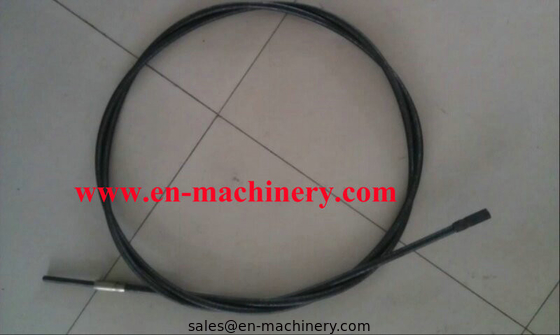

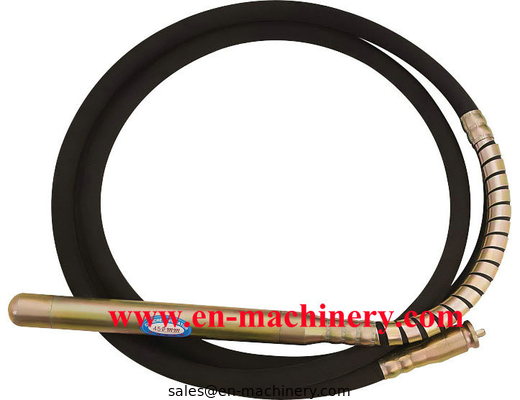

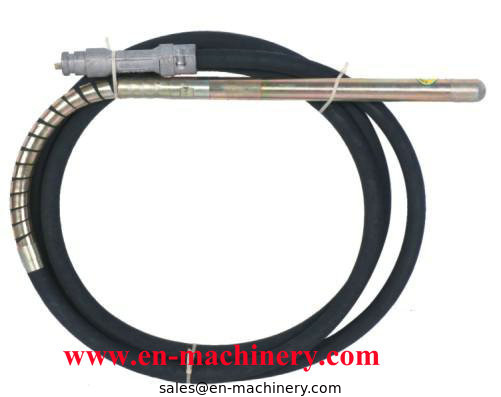

Concrete Vibrator Shaft

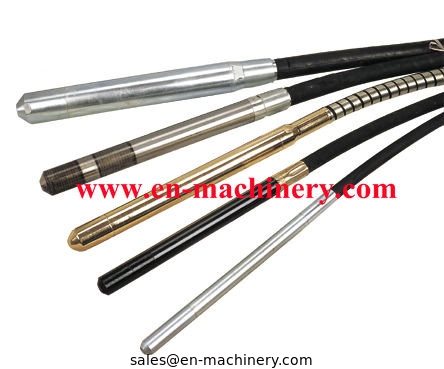

1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft

Functional Description:

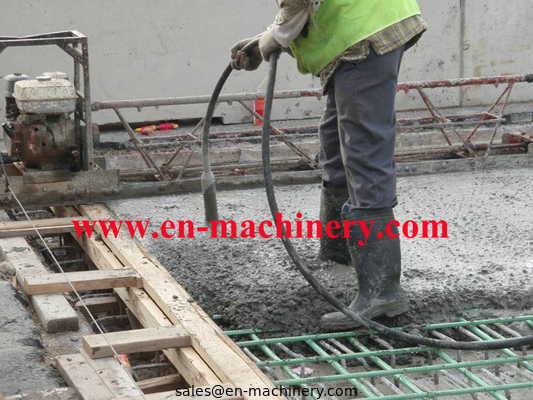

 Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.



Main Features:



1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

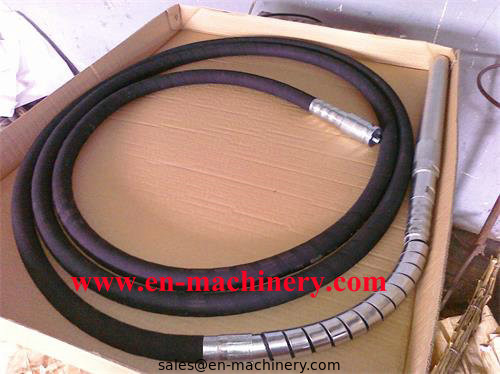

Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.

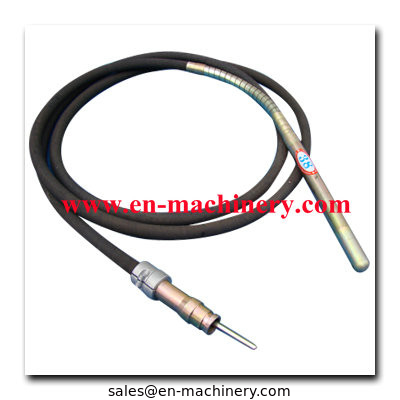

Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose 0

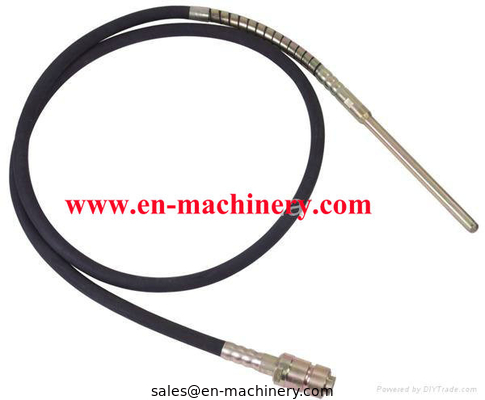

Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose 1Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose 2Portable Concrete Vibrator for Construction Tools Concrete Vibrator Shaft/Flexible Drive concrete vibrator flexible hose 3

You may also interested in other products,mini concrete mixer,vibratory road roller
