Customized hot sale concrete vibrator rubber hose vibrator hose/flexible shaft

10 pcs
MOQ
$5.00 per pc
Price
Customized hot sale concrete vibrator rubber hose vibrator hose/flexible shaft
Features Gallery Product Description Request A Quote
Features
Specifications
Vibrating Frequency: 220-260HZ
Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m
Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs
Overall Dimension: 1376*80*138mm
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN
Payment & Shipping Terms
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs/month
Product Description

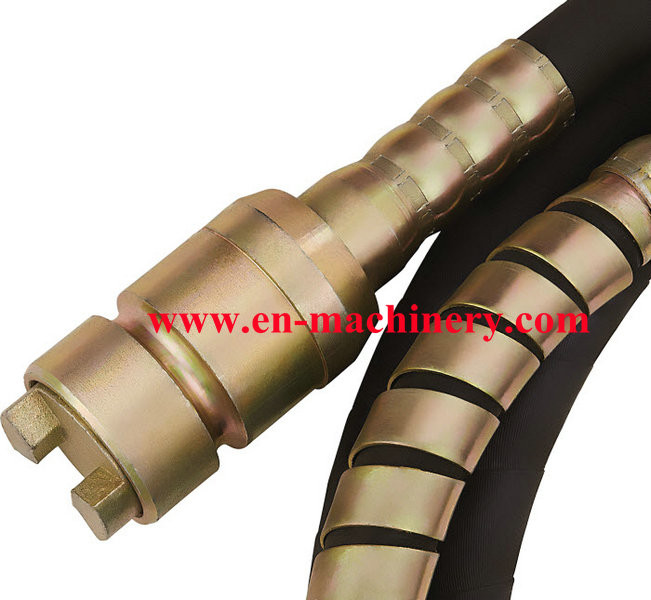

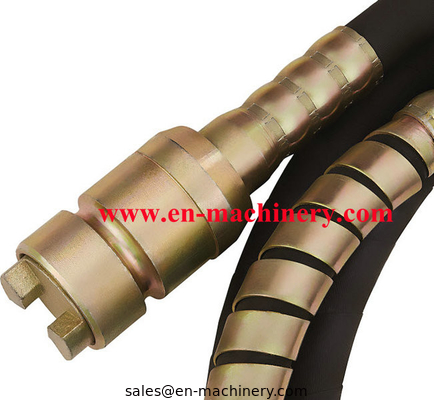

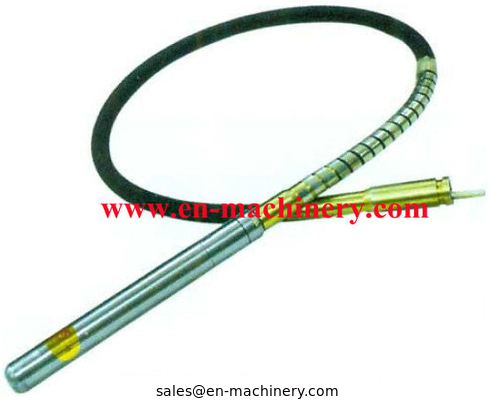

Customized hot sale concrete vibrator rubber hose vibrator hose/flexible shaft

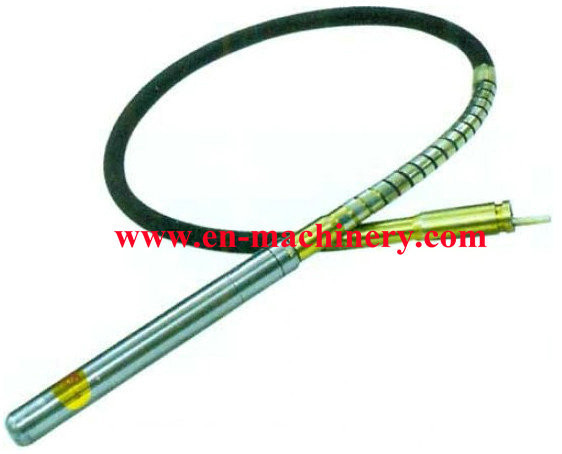

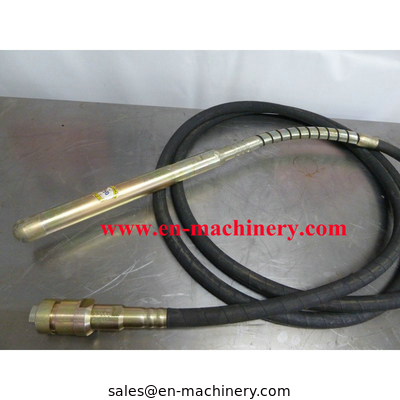

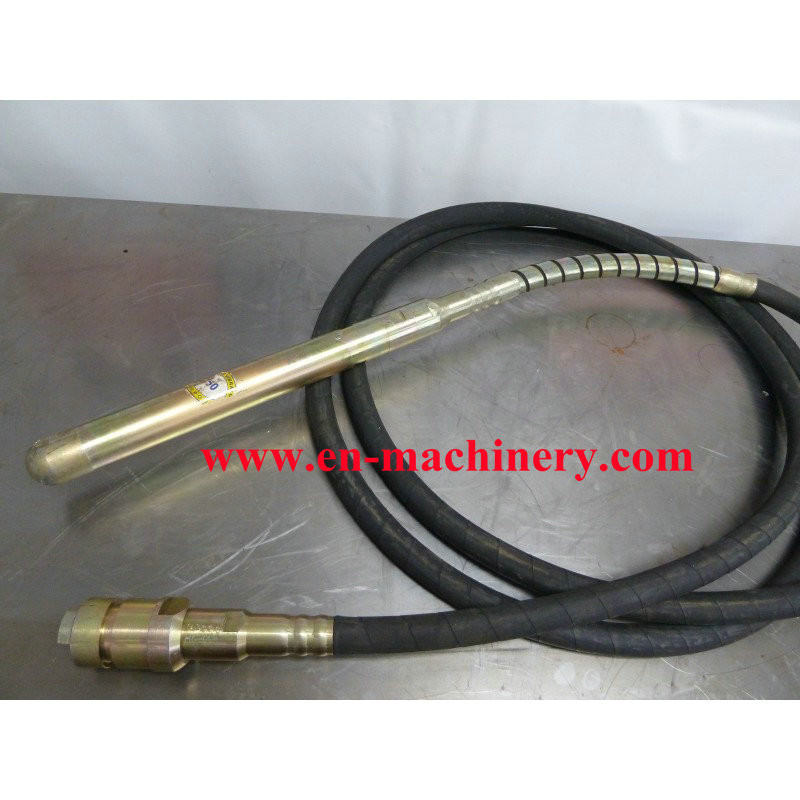

Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft

Functional Description:

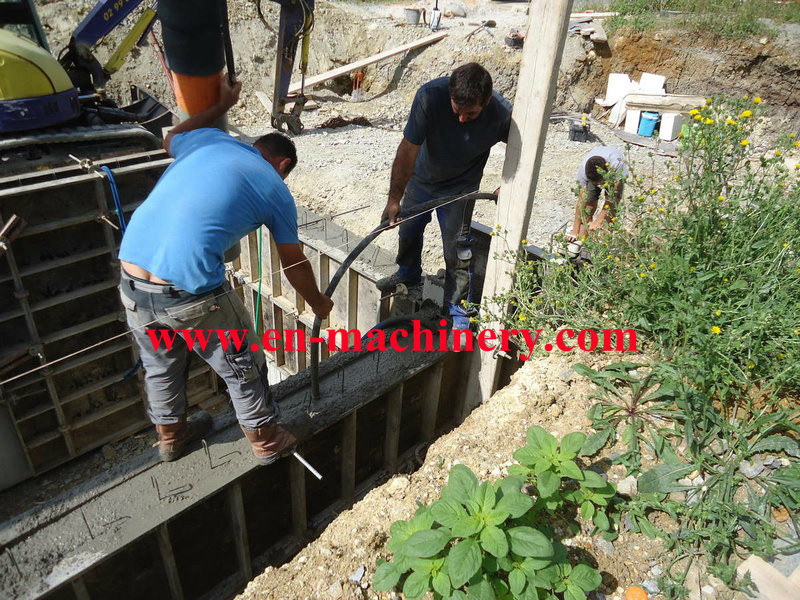

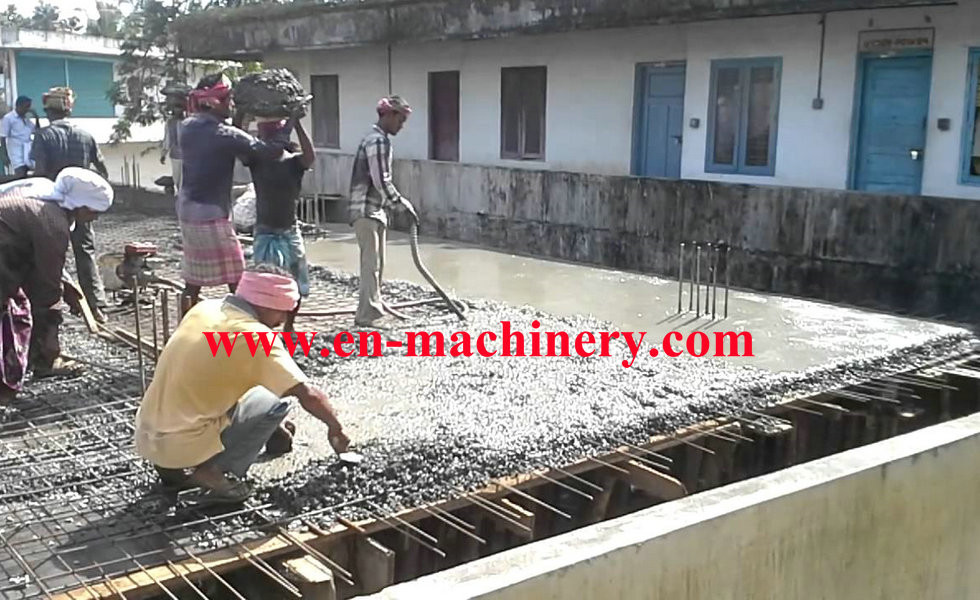

 Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.

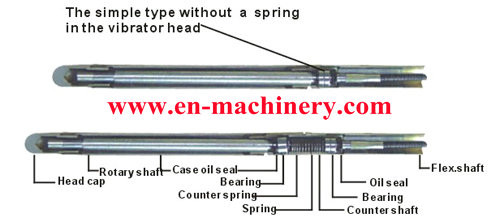

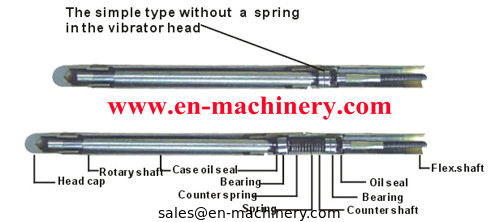

Main Features:

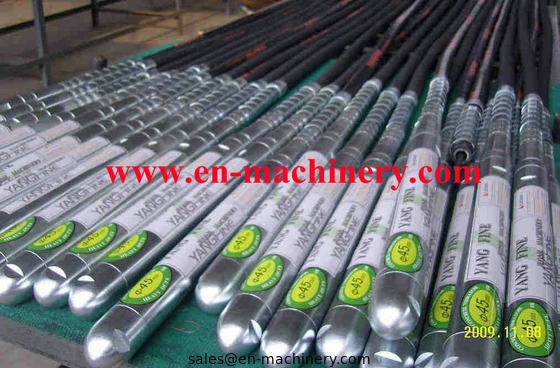

1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

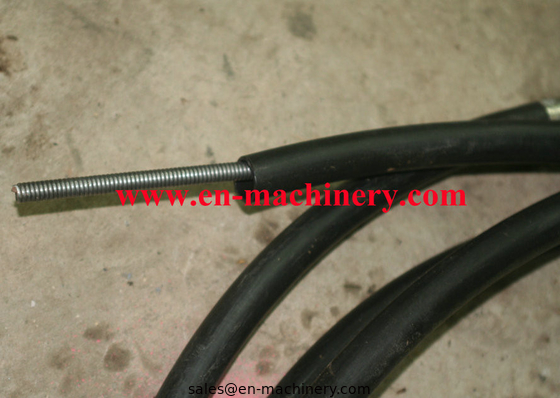

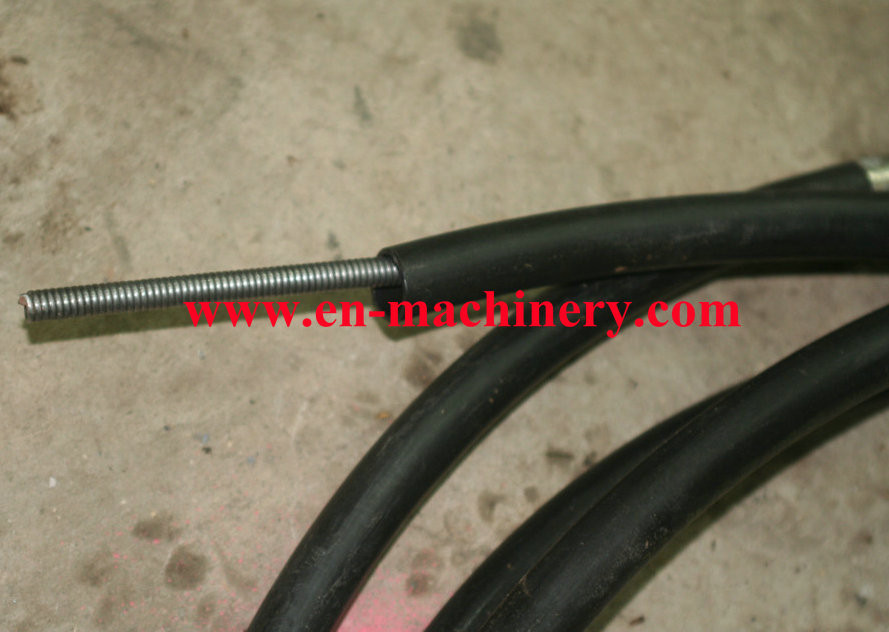

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

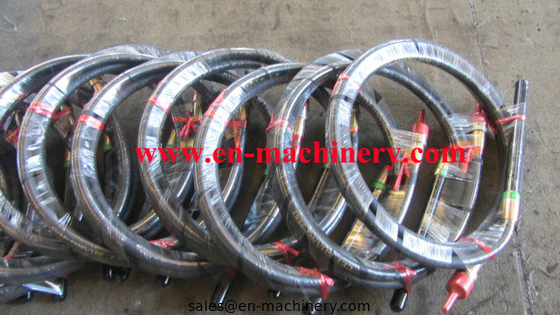

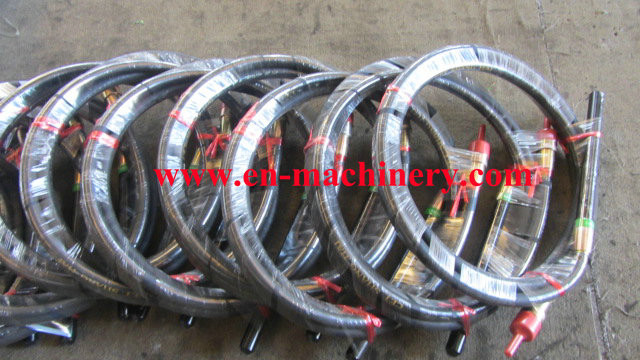

Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.


Model

Vibrating Head

Size

Vibration

(V.P.M)

Vibration Amplitude

(mm)

Flexible Shaft

Diameter

Rubber Hose Diameter

and Length

CPV-25 25mmx47cm 10,000~15,000 0.9 8mm 25mmx4m-6m
CPV-28 28mmx47cm 0.9 8mm 28MMX4M-6M
CPV-32 32mmx47cm 1.1 10mm 30mmx4m~6m
CPV-35 35mmx47cm 1.1 10mm 30mmx4m-6m
CPV-38 38mmx47cm 1.6 10mm 30mmx4m~6m
CPV-45 45mmx47cm 2 10mm 30mmx4m~6m
CPV-50 50mmx47cm 2.2 13mm 36mmx4m~6m
CPV-60 60mmx47cm 9,000~12,000 2.4 13mm 36mmx4m~6m
CPV-70 70mmx47cm 2.6 14mm 36mmx4m~6m



Technical Specifications:



      1000 N 50-60 N 40Mn-65Mn 20HRC-30HRC 50-62
JYG16 16mm 9mm 1 75

JYG20
20mm 10mm 1 80


JYG22 22mm 10mm 2 80

JYG24     60-65 N 20Mn-65Mn 75-80 according to the
24mm 13mm demand 100


JYG30 30mm 16mm 120

JYG32
32mm 18mm 150

JYG36
36mm 20mm 200

JYG42     250
42mm 25mm



Customized hot sale concrete vibrator rubber hose vibrator hose/flexible shaft 0

Customized hot sale concrete vibrator rubber hose vibrator hose/flexible shaft 1Customized hot sale concrete vibrator rubber hose vibrator hose/flexible shaft 2

You may also interested in other products,mini concrete mixer,vibratory road roller
