NEW economical with clamp design concrete vibrator flexible shaft vibrator parts needle

10 pcs
MOQ
$5.00 per pc
Price
NEW economical with clamp design concrete vibrator flexible shaft vibrator parts needle
Features Gallery Product Description Request A Quote
Features
Specifications
Vibrating Frequency: 220-260HZ
Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m
Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs
Overall Dimension: 1376*80*138mm
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN
Payment & Shipping Terms

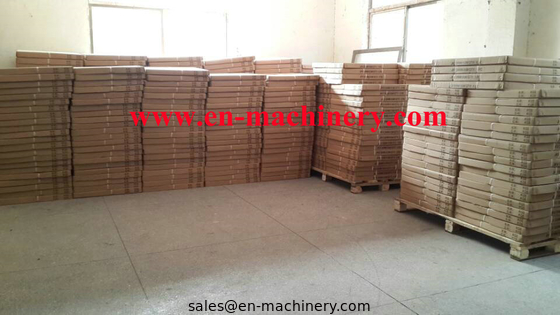

Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs/month
Product Description

NEW economical with clamp design concrete vibrator flexible shaft vibrator parts needle

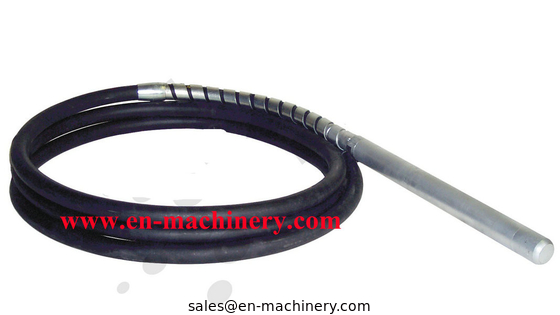

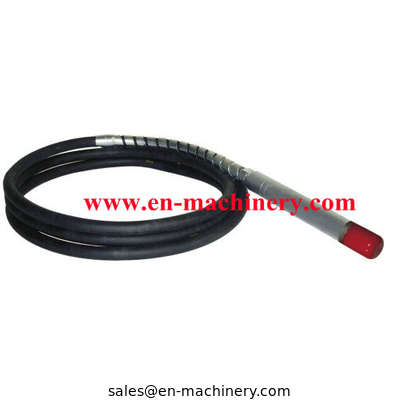

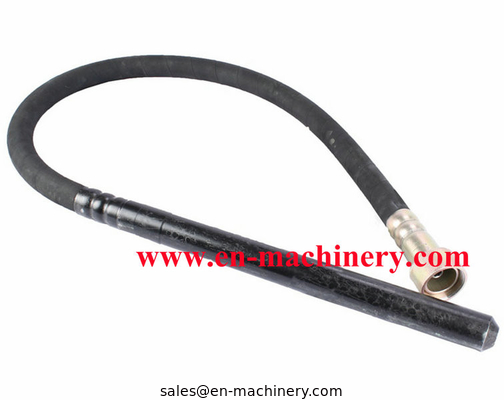

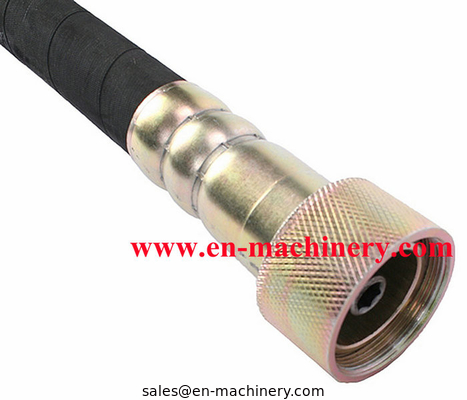

Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft

Functional Description:

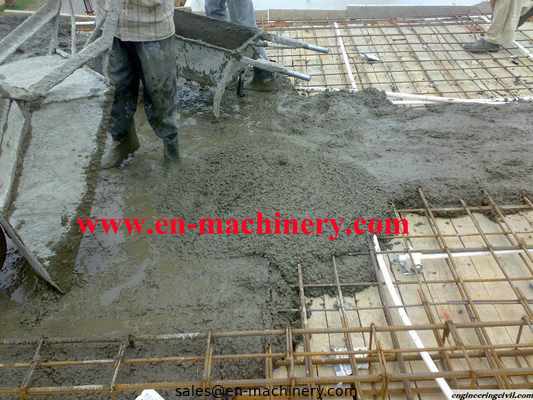

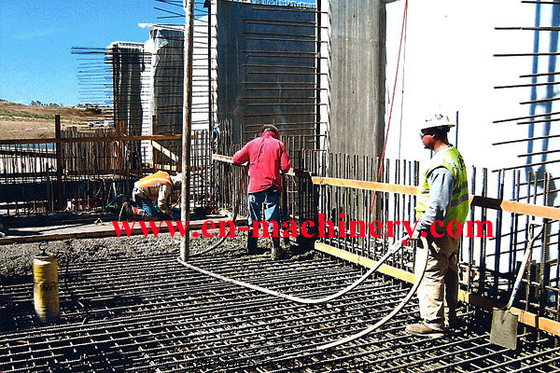

 Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.



Main Features:



1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

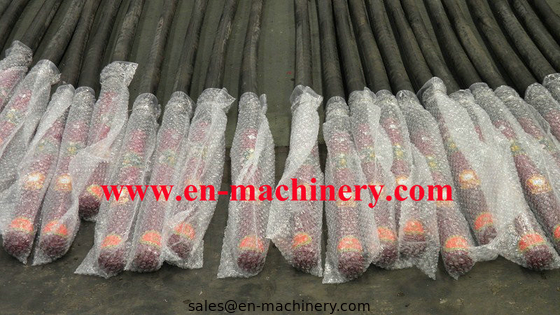

Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.


Model No
ZX35
ZX45
ZX50
Diameter
35mm
45mm
60mm
Vibrating frequency
183Hz
183Hz
183Hz
Outside dia of flexibe hose
30mm
32mm
36mm
Inner dia of flexible shaft
10mm
12mm
13mm
Length
1m to 4m
1m to 12m
1m to 12m
Max. vibratioin force
4.846KN
5.932KN
6.704KN
Vibrating amplitude
1.11mm
1.2mm
1.28mm
Avaible motor or engine
electric motor, gasoline engine, diesel engine




NEW economical with clamp design concrete vibrator flexible shaft vibrator parts needle 0

NEW economical with clamp design concrete vibrator flexible shaft vibrator parts needle 1NEW economical with clamp design concrete vibrator flexible shaft vibrator parts needle 2



You may also interested in other products,mini concrete mixer,vibratory road roller
