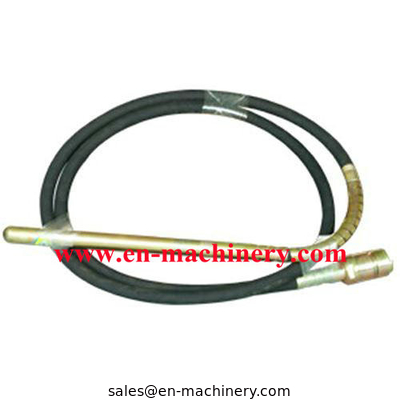

Cement vibrator portable concrete vibrator hose SHAFT/NORMAL RUBBER HOSE

10 pcs
MOQ
$5 per pc
Price
Cement vibrator portable concrete vibrator hose SHAFT/NORMAL RUBBER HOSE
Features Gallery Product Description Request A Quote
Features
Specifications
Vibrating Frequency: 220-260HZ
Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m
Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs
Overall Dimension: 1376*80*138mm
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN
Payment & Shipping Terms
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs/month
Product Description

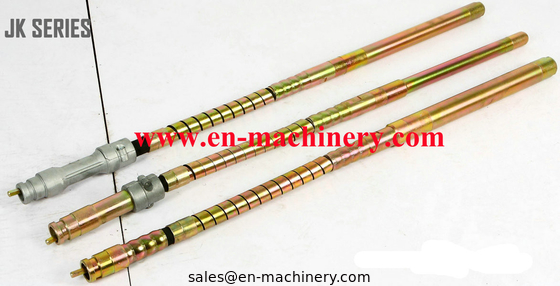

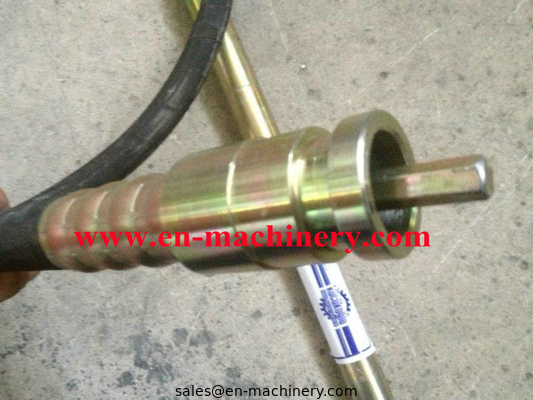

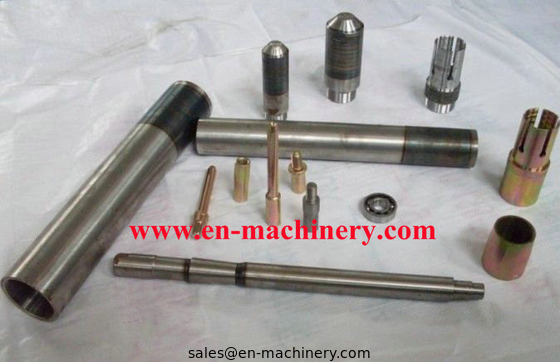

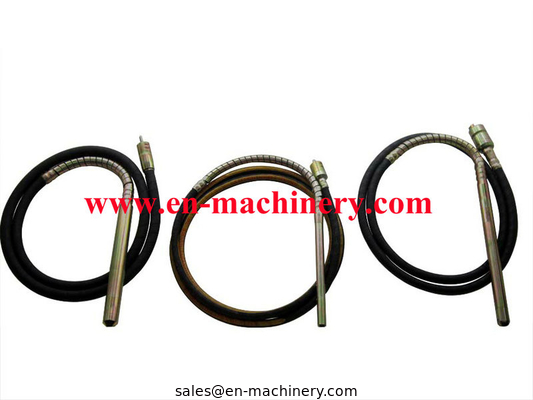

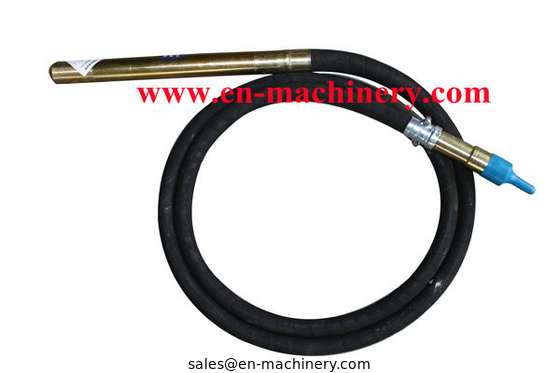

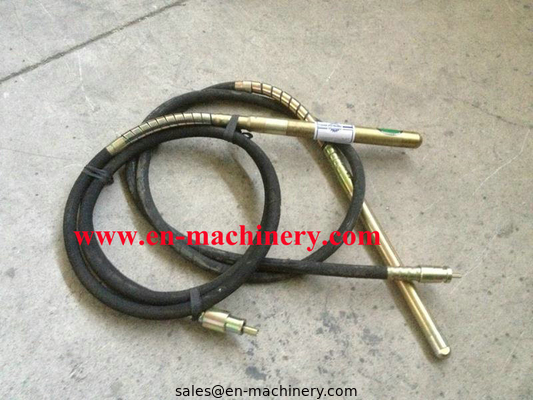

Cement vibrator portable concrete vibrator hose SHAFT/NORMAL RUBBER HOSE





Vibrators are used in many different industrial applications both as components and as individual pieces of equipment.

Vibratory feeders and vibrating hoppers are used extensively in the food, pharmaceutical, and chemical industries to move and position bulk material or small component parts. The application of vibration working with the force of gravity can often move materials through a process more effectively than other methods. Vibration is often used to position small components so that they can be gripped mechanically by automated equipment as required for assembly etc.

Vibrating screens are used to separate bulk materials in a mixture of different sized particles. For example, sand, gravel, river rock and crushed rock, and other aggregates are often separated by size using vibrating screens.

Vibrating compactors are used for soil compaction especially in foundations for roads, railways, and buildings.

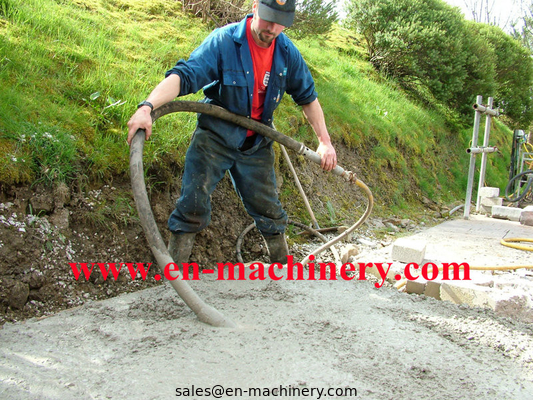

Concrete vibrators consolidate freshly poured concrete so that trapped air and excess water are released and the concrete settles firmly in place in the formwork. Improper consolidation of concrete can cause product defects, compromise the concrete strength, and produce surface blemishes such as bug holes and honeycombing. An internal concrete vibrator is a steel cylinder about the size of the handle of a baseball bat, with a hose or electrical cord attached to one end. The vibrator head is immersed in the wet concrete.

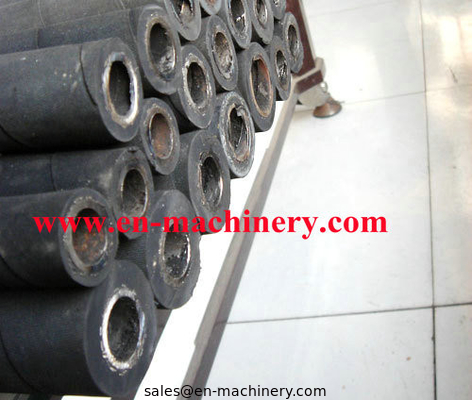

It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.


Model


Outer.dia


Inner.dia


Rubber tensile


Adhensive of inner rubber

Steel belt material


Steel belt hardness


Rubber hardness


Steel wire braid


Min.bending radius(mm)


JYG16


16mm


9mm

>1000 N/

50-60
N/

40Mn-65Mn

20HRC-30HRC

50-62


1


75

JYG20
20mm


10mm


1


80


JYG22


22mm


10mm


2


80

JYG24
24mm


13mm

60-65

20Mn-65Mn

75-80

according to the
demand


100


JYG30


30mm


16mm


120

JYG32


32mm


18mm


150

JYG36


36mm


20mm


200

JYG42
42mm


25mm


250



Cement vibrator portable concrete vibrator hose SHAFT/NORMAL RUBBER HOSE 0

Cement vibrator portable concrete vibrator hose SHAFT/NORMAL RUBBER HOSE 1Cement vibrator portable concrete vibrator hose SHAFT/NORMAL RUBBER HOSE 2

You may also interested in other products,mini concrete mixer,vibratory road roller
