Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply

Good quality Mini Concrete Mixer for sales
I'm Online Chat Now

Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply

China Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply supplier
Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply supplier Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply supplier Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply supplier

Large Image :  Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply

Product Details:

Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: $1 per pc
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs/month
Contact Now
Detailed Product Description
Vibrating Frequency: 220-260HZ Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs Overall Dimension: 1376*80*138mm

Wear Resistace Concrete Vibrator Rubber Hose Cement Hose Factory direct supply

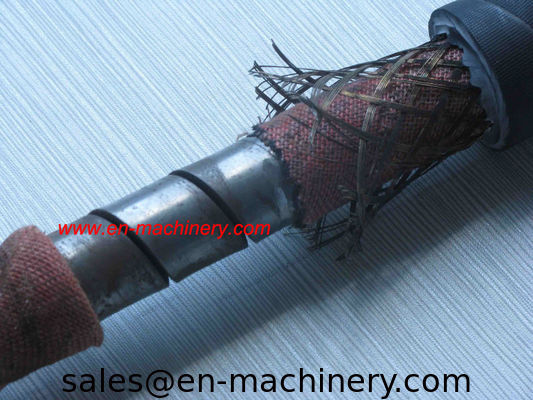

Good quality abrasion resistant concrete vibrator rubber hose

Product Description

concrete vibrator hose

Tube: black conductive NR-abrasion resistant
Reinforcement: high tensile textile cords
Cover: black conductive SBR/NR-abrasion and ozone resistant
Temperature: -30 °C +80 °C



Hose I.D

Hose O.D

Working Pressure

Burst Pressure

Minimum Bend Radius

Weight

inch

mm

mm

bar

psi

bar

psi

mm

kg/m

1/2

13

26

10

150

30

450



0.63

5/8

16

29

10

150

30

450



0.68

3/4

19

32

10

150

30

450



0.75

1

25

39

10

150

30

450



1.13

1 1/4

32

48

10

150

30

450



1.30

1 1/2

38

56

10

150

30

450



1.73

1 3/4

45

63

10

150

30

450



1.98

2

51

69

10

150

30

450



2.20

2 1/2

64

82

10

150

30

450



2.70



Rubber hose other production:

1.Welding hose:LPG hose , Twin Line hose,OXYGEN hose,acetylene hose
2.Air/Water hose
3.Fuel/oil hose
4.Water suction/delivery hose
5.Sandblast hose

Other Production:Hydraulic High pressure hose



Wire braid hydraulic hose

1.SAE 100R1AT/DIN EN853 1SN

2.SAE 100R2AT/DIN EN853 2SN

3.EN857 1SC/2SC

4.SAE R16/R17

5.SAE 100R14/TEFLON HOSE

6.SAE R5

Wire spiral hydraulic hose

1.DIN 20023 EN856 4SP

2.DIN 20023 EN856 4SH

3.SAE 100 R12

4.SAE 100 R13

Fibre braid hydraulic hose

1.SAE 100R7/EN855 R7

2.SAE 100R8/EN855 R8

3.SAE 100 R3

4.SAE 100 R6



Model CVS28 CVS32 CVS35 CVS38 CVS45 CVS50 CVS60 CVS70
Dia. of Vibrating head 28mm 32mm 35mm 38mm 45mm 50mm 60mm 70mm
Dia. of rubber hose 25mm 30mm 30mm 30mm 30mm 36mm 36mm 36mm
Dia. of flexible shaft 8mm 10mm 10mm 10mm 10mm 13mm 13mm 13mm
Standard length 4m &6m
Coupling model Chinese type,Japanese type.Malaysian type,Australian type.etc.
Color Zinc Color,other color for optional
Package 5-layer Carton box with bubble inside
Carton Size Normally,77x66x5.5cm; Malaysina type,77x66x7cm 77x66x7cm
Hs Code 8479909090
