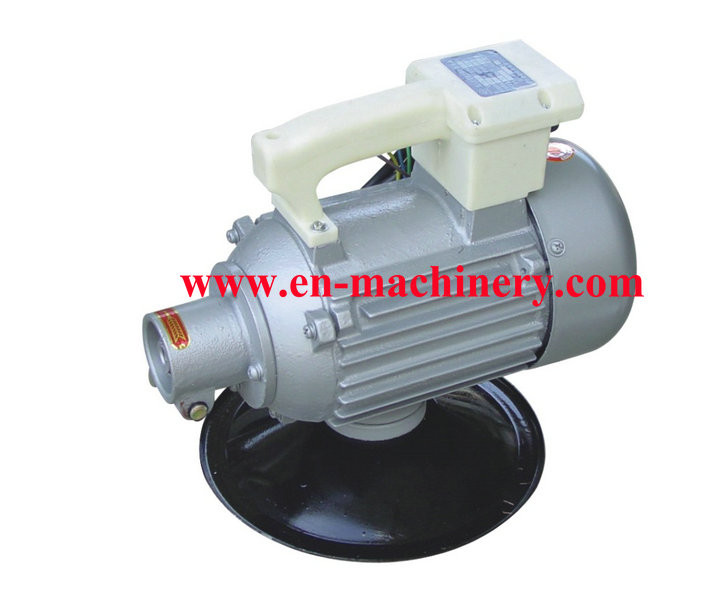

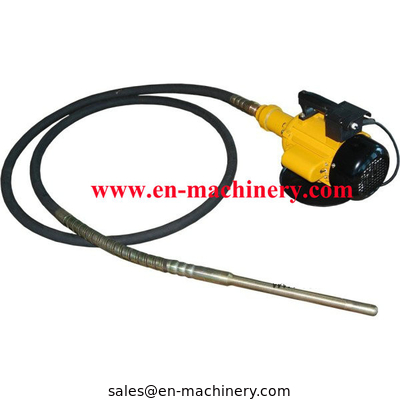

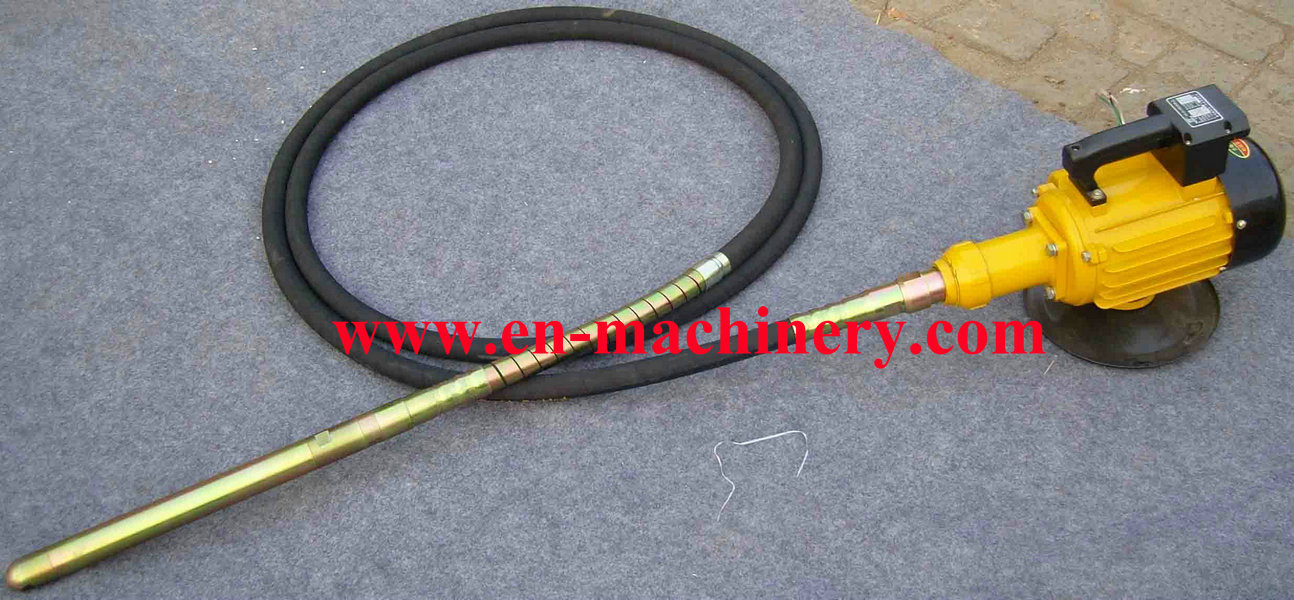

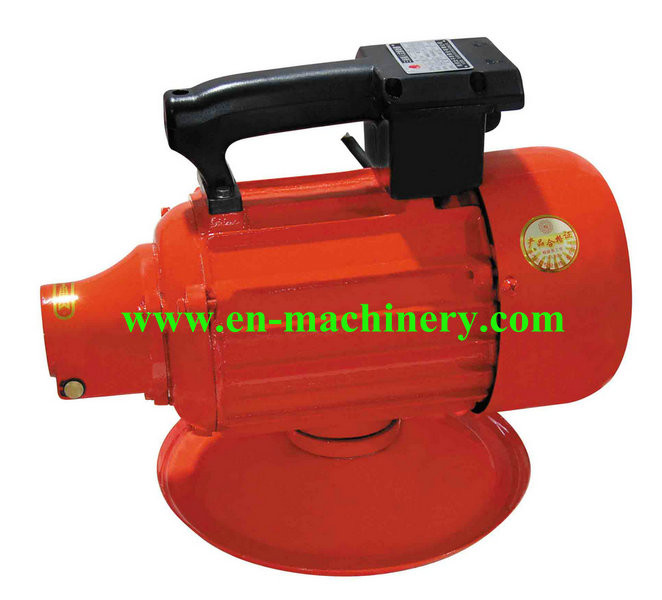

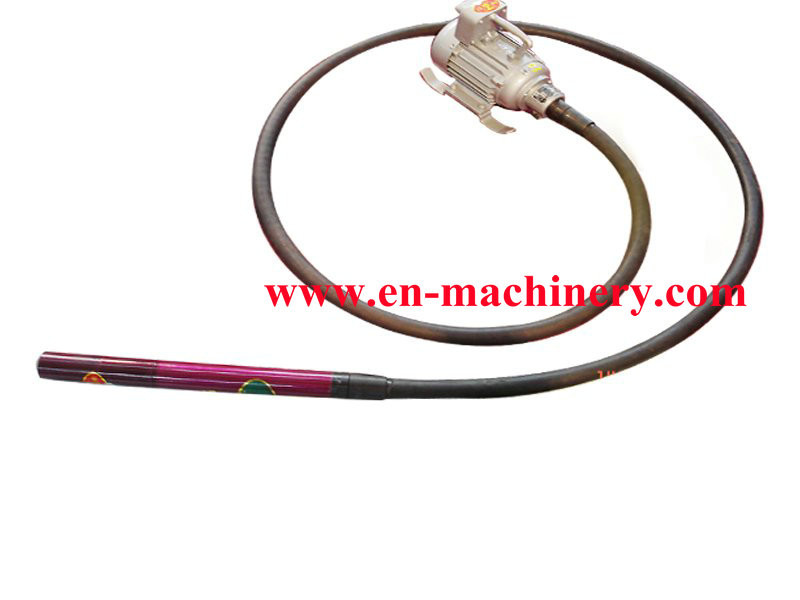

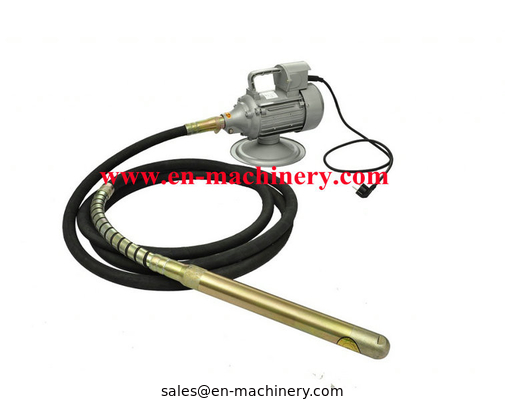

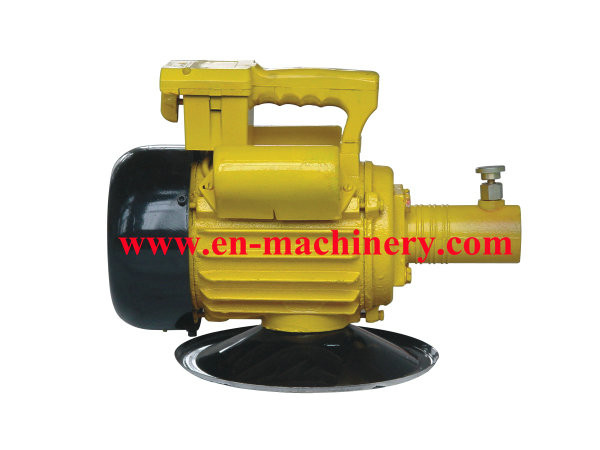

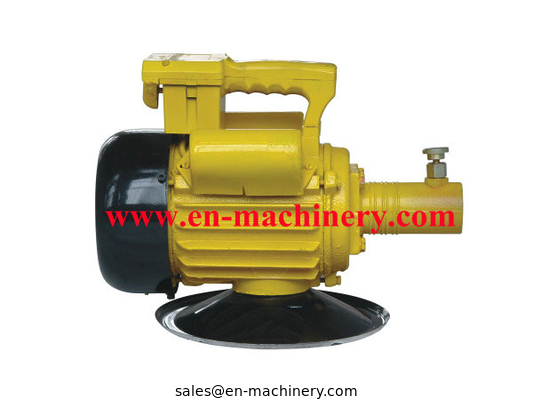

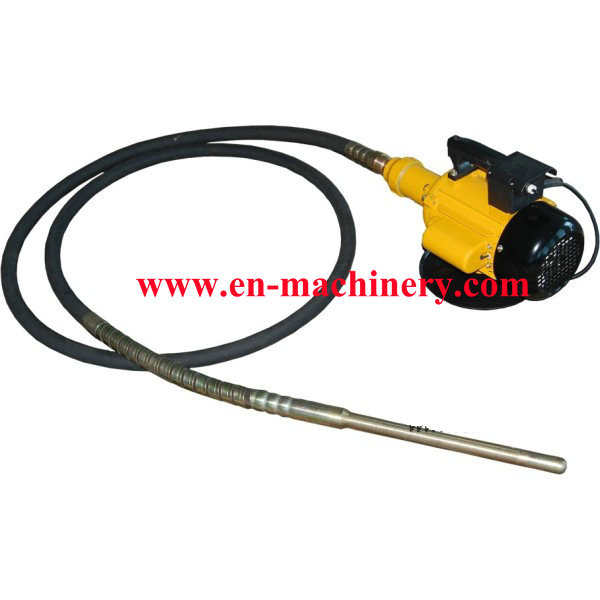

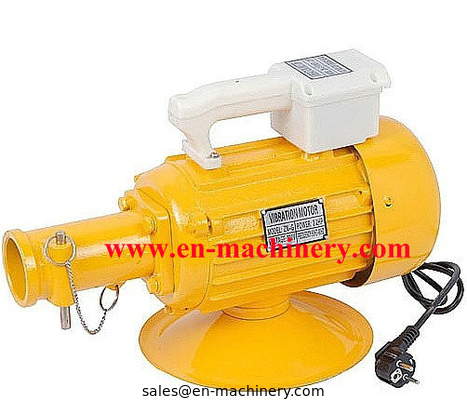

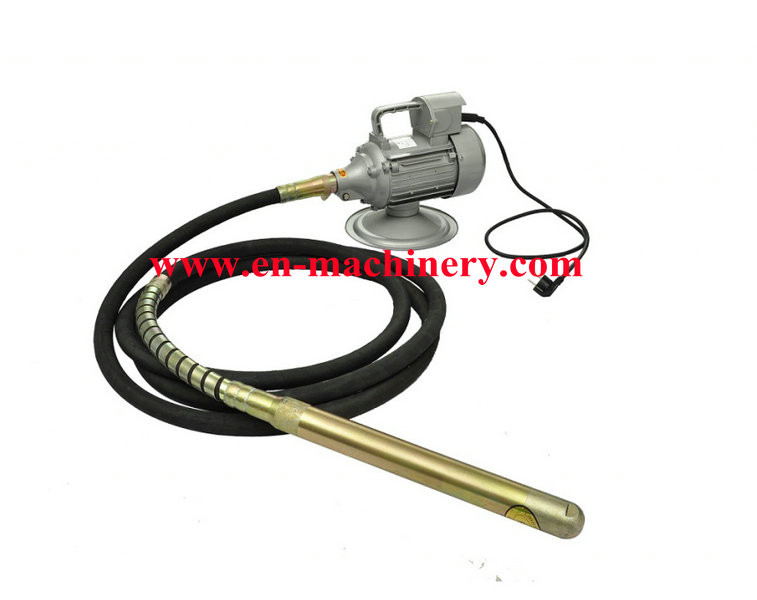

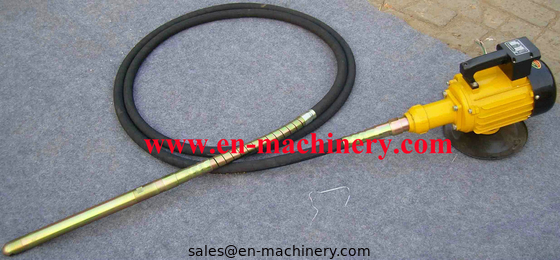

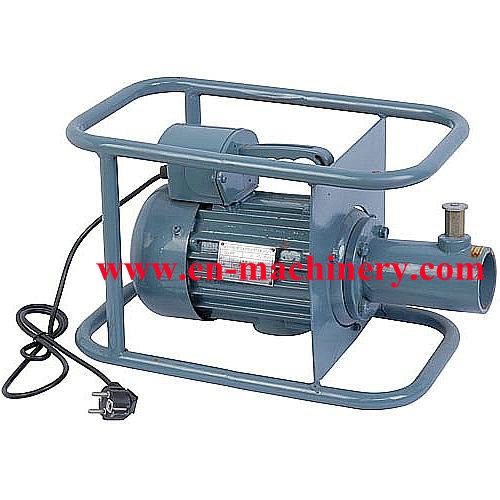

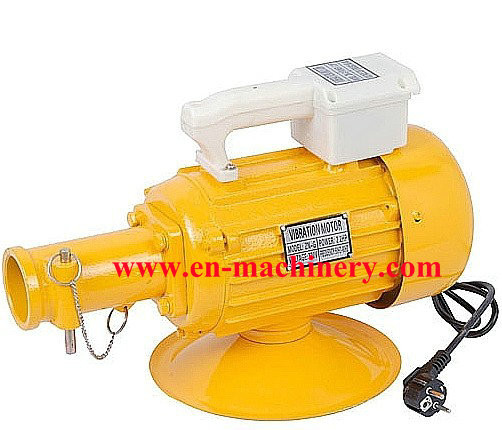

Good price internal concrete vibrator / concrete vibrator construction machine

Good price internal concrete vibrator / concrete vibrator construction machine

Good price internal concrete vibrator / concrete vibrator construction machine
Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine Good price internal concrete vibrator / concrete vibrator construction machine

Large Image :  Good price internal concrete vibrator / concrete vibrator construction machine Get Best Price

Product Details:
Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN
Payment & Shipping Terms:
Minimum Order Quantity: 10 set
Price: $10/set
Packaging Details: carton or up to the customers
Delivery Time: about 3 days for ready goods,about 15 days for OEM
Payment Terms: TT or L/C,wester union, D/A, D/P, MoneyGram
Supply Ability: 10000 pcs/month
Detailed Product Description
Power: 0.25kw ,1.5kw,2.2kw, Voltage: 220V/380V
Frequency: 50/60HZ Size: 510*400*510mm
Weight: 38kgs Speed: 4000RPM

Good price internal concrete vibrator / concrete vibrator construction machine

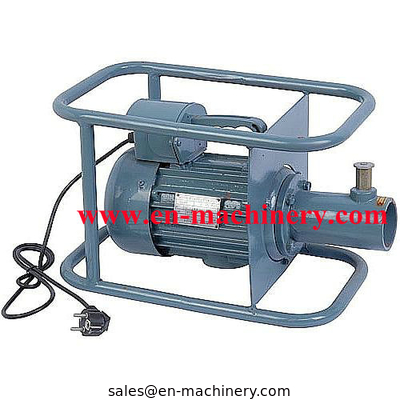

Electric concrete vibrator / concrete vibrator construction machine/external concrete vibrators with motor

Description of the concrete vibrator

1.main technical parameters of the concrete vibrator



Model Power Supply Output Power Vibrating Amplitude Centrifugal Force Current Weight
  v/hz kw mm kn A kg
9 380/50 0.03-0.09 1.5-2.1 1-0 0.15-0.19 4.4
18 380/50 0.18 2.3 1 0.37 7.5
25 380/50 0.25 1.8 1.8 0.67 12
55 380/50 0.55 1.64 4.15 1.3 21.5
80 380/50 0.8 2 2.6 1.74 27
110 380/50 1.1 2 4.3 2.52 27
150 380/50 1.5 2.4 8.3 3.18 38
220 380/50 2.2 2.2 10 4.6 46
300 380/50 3 2.2 14 6.4 57



Model
ZN50
ZN70
ZN90
ZN100
Voltage
110/220/380V
220/380V
380V
Power
1.1KW
1.5KW
2.2KW
3.0KW
Frequency
50/60HZ
Speed
2840RPM
Material of Body
Iron Smooth

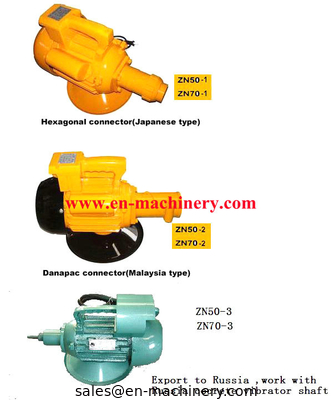

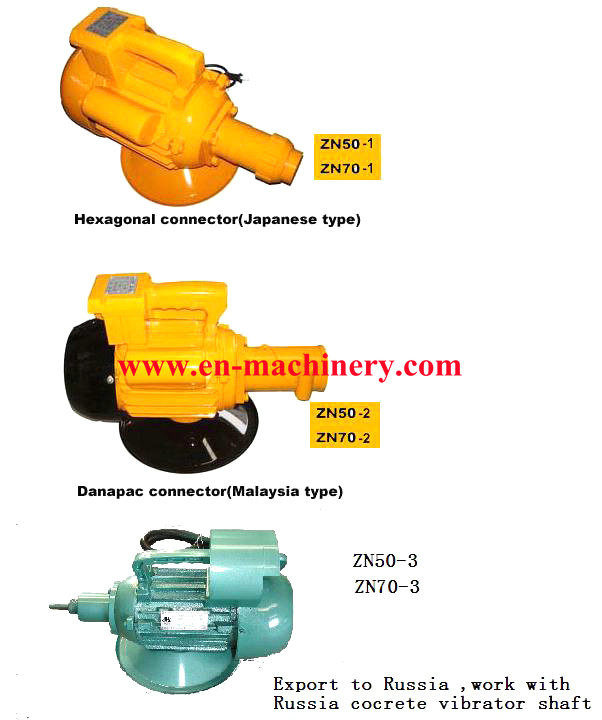

Coupling Type
Chinese, Japanese, Dynapac
Shaft Diameter
25/32/35/38/45/50mm
Length
4m~8m for optional
Motor Plug
Optional





2.Feature of the concrete vibrator

 1).Aluminum alloy casing, for better thermal diffusivity, which insure stability;

2).Copper wires for better electric conductiility;

3).T-series vibrator can adjust the vibrating amplitude according to use's need;

4).Modifiable design, made it working in 415V 50Hz/60Hz condition.



Pin type 1.5HP/220V Concrete Vibrator For Construction



Concrete vibrator , work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.



our target is to serve for clients all over the world and offer the high-quality products and afforable price..we accept OEM service.

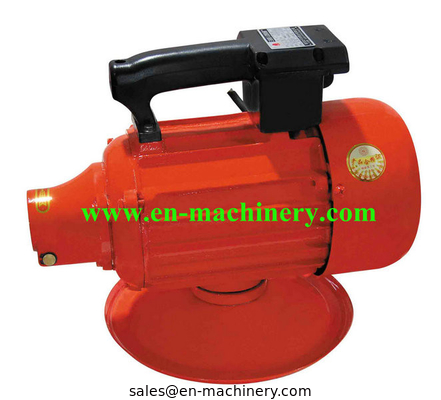

Good price internal concrete vibrator / concrete vibrator construction machine 0

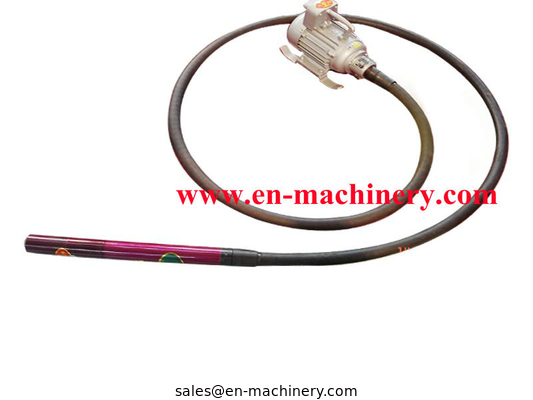

Good price internal concrete vibrator / concrete vibrator construction machine 1Good price internal concrete vibrator / concrete vibrator construction machine 2



You may interested in other products:concrete vibrator shaft,concrete power trowel
