China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery

Good quality Mini Concrete Mixer for sales
I'm Online Chat Now

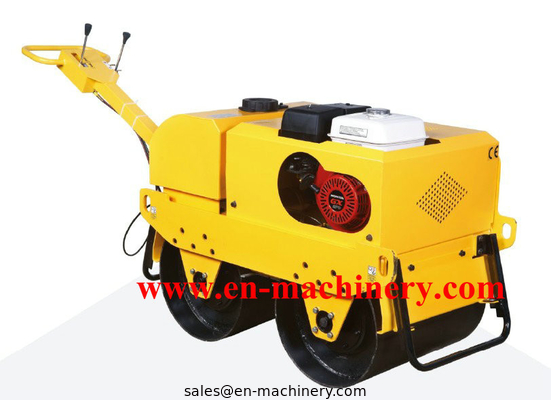

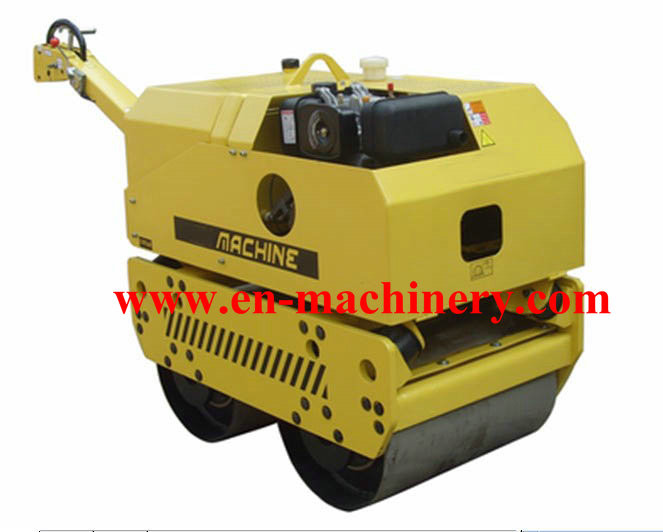

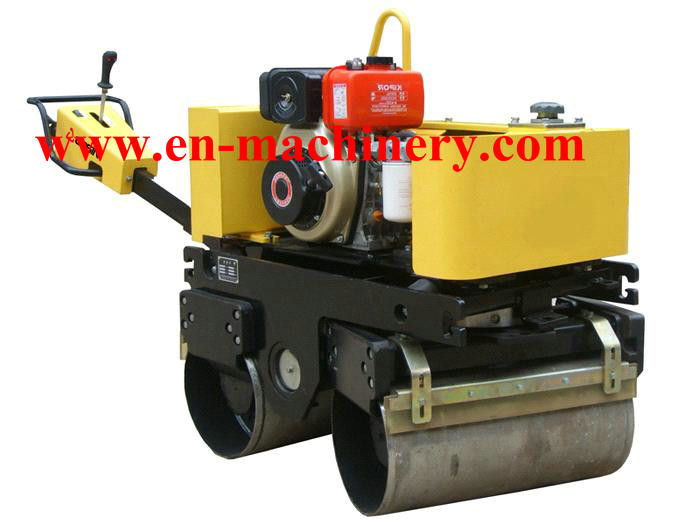

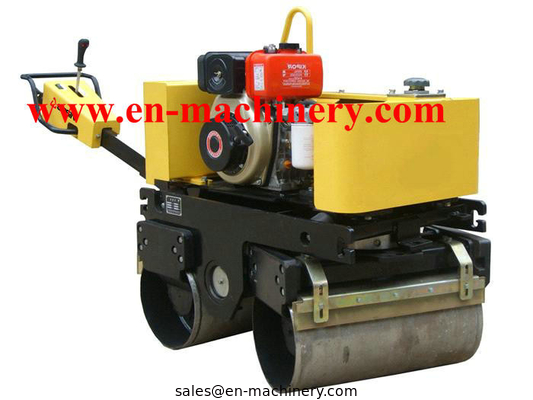

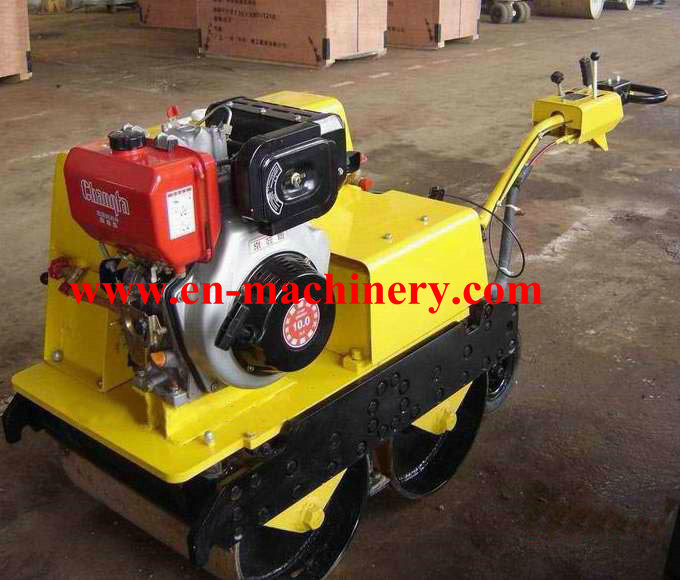

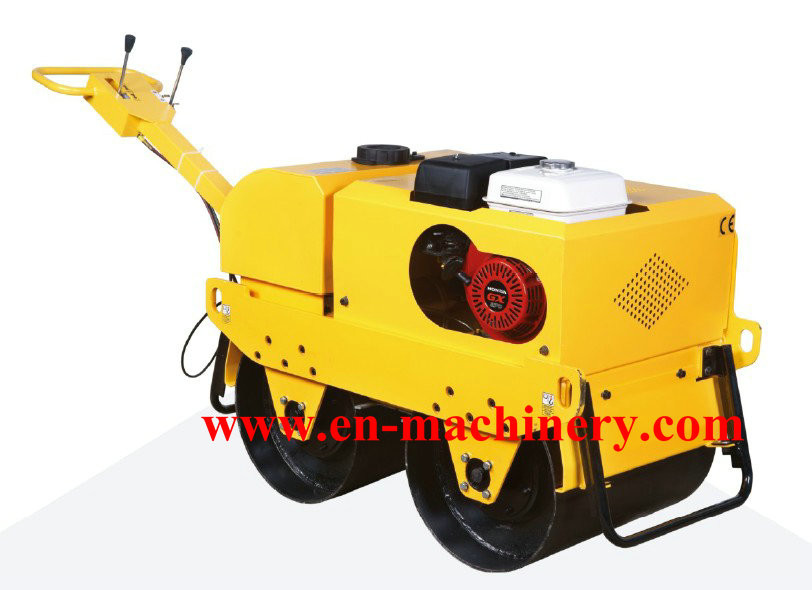

China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery

China China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery supplier
China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery supplier China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery supplier China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery supplier China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery supplier China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery supplier

Large Image :  China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery

Product Details:

Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: YT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2500/set
Packaging Details: wooden case
Delivery Time: about 3 days for ready goods,about 15 days for OEM
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Name: Asphalt Rolle Power: 13HP
Weight: 600kgs,800kgs
High Light:

Vibratory Roller

,

Road Roller

,

Asphalt Roller

China Double Drum Vibratory Road Roller Asphalt Roller Construction machinery



Different to most of chain or belt driven rollers on the market, is with a fully hydraulic-drive system, consists of hydraulic pumps and motors not only on vibration but also movement, eliminating the need for regular periodic adjustments and changes while providing infinitely variable working speed.
Deadman control lever offers reversing protection.
Anti vibration controls ensure non-fatiguing and low vibration for the operator.
Drive system uses world famous brand SAUER variable pump, fixed displacement hydraulic motor, stepless speed, easy to change direction.
55 Liters, corrosion-free water tank mounted at the rear of roller reduces sound and keeps dust to a minimum.
Vibration is controlled by easy to reach on and off switch in speed controlled hand lever.
Two scraper bars on each drum ensure a clean drum when working on asphalt.
A fully hydraulic-drive system consists of hydraulic pumps and hydraulic motors provides infinitely variable working speed for travel and vibration, eliminating regular maintenance and adjustments that chain driven rollers require.
Production Line of Road Rolle
Fretures:
1. Central-gravity set lifting hook;
2. Deadman control provide safety protection;
3. Comfortable steering handle design;
4. Heavy duty vibration system provide vibration on both front and rear drum;
5. Smooth drum ideal for asphalt and thicker drum shells for long life.


Model

Engine type Honda Gx390 Wilson GE 186F Lombardini 15L440
Power HP 13 10 11
Weight kg 800 800 800
Drum diameter mm 650X420 650X420 650X420
Static linear force N/cm 54 54 54
Centrifugal force KN 25 25 25
Frequency vpm(mm) 3300(55) 3300(55) 3300(55)
Travel speed km/h 0-3.6 0-3.6 0-3.6
Water tank capacity L 65 65 65


China Double Drum Vibratory Road Roller Asphalt Roller Construction machineryChina Double Drum Vibratory Road Roller Asphalt Roller Construction machineryChina Double Drum Vibratory Road Roller Asphalt Roller Construction machinery
