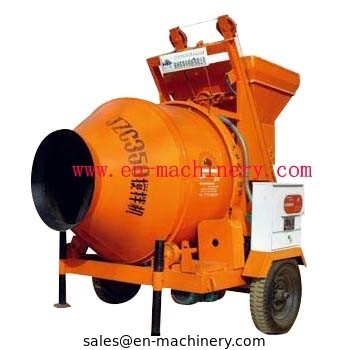

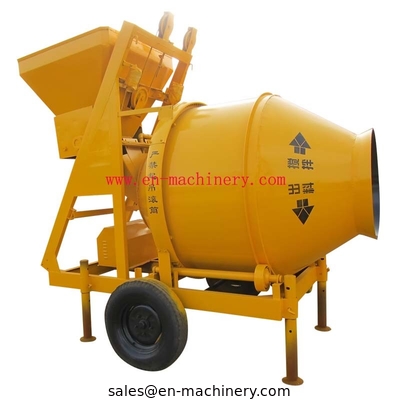

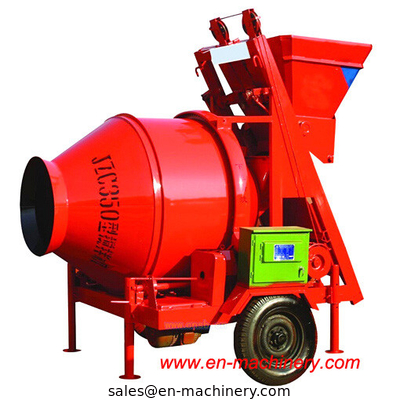

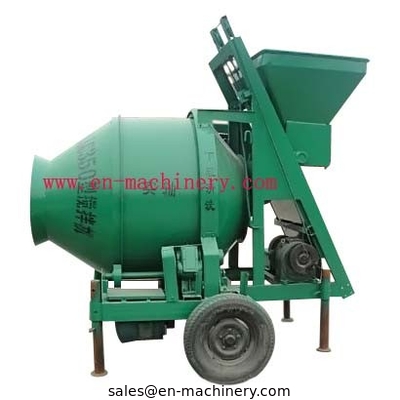

China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)

Good quality Mini Concrete Mixer for sales
I'm Online Chat Now

China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)

China China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350) supplier
China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350) supplier China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350) supplier China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350) supplier China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350) supplier China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350) supplier

Large Image :  China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)

Product Details:

Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: JQ350

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1600/set
Packaging Details: nude package or up to the customers
Delivery Time: 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Motor Power: 5.5KW Mixing Power: 5.5KW
Charging Capacity: 560L Reclaiming Capacity: 350L
Speed Of Mixing Drum: 20KM/H Water Supply Mode: By Manual
Working Cycle Period: 14RPM Discharge Way: Automatic
Outline Dimension: 2765*2140*3000MM Weight: 1980KGS
High Light:

concrete mixer

,

concrete truck

,

construction machine

China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)



Description of JZC350 DieselConcrete Mixer:

Diesel Concrete Mixer is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.



Diesel Concrete Mixer is featured by diesel engine power, wire rope tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.



Features of JZC350 Diesel Concrete Mixer:

1. All-steel construction,Concrete Mixerhaslong life span.

2. Large wheels, It's easy to move theConcrete Mixertoanywhere.

3. DieselConcreteMixerisenergy saving and environment friendly.

4. Cast iron gear DieselConcrete Mixersteady and silent working.

5. Painted surface, DieselConcrete Mixerisrust- proof.





Specifications



Concrete Mixer
1.The mixing drum is to stir, reversed discharging
2.Good mixing quality
3.Energy saving
4.Durable use



Product parameters
Model/Parameters/Project JZC300 JZC350 JZC400 JZC500 JZC750
Performance Discharging volume(L) 300 350 400 500 750
Loading Volume(L) 480 560 640 800 1200
Productivity(m³/h) 9-12 10-14 12-16 18-20 25-30
Speed of Mixing Drum(r/min) 14-17 14 14 13 12
Motor Mixing Motor(kw) 4 5.5 7.5 7.5 11
Hoist Motor(kw) 4 4.5 4.5 4.5 75
Water Pump Motor(kw) 0.55 0.55 0.55 0.75 1.1
Type Weight(kg) 1300 1950 2010 4200
Demension(mm) 2260*1990*2750 2760*2140*3000 2960*3120*2140 6116*2056*6060



Model JZC350
Discharging Capacity 350L
Loading Capacity 560L
Productivity 10-14 m3/h
Thickness of Mixing Drum 6mm
Rated Power of Diesel Engine 5.5KW
Power of Water Pump 0.55KW
Accuracy of Water Supply Error≤2 Percent
Maximum Size of Aggregate 60MM
Max Trailing Speed 20 km/h
Tyre Size 6.50-16
Speed of Mixing Drum 14 RPM
Overall Dimension (L×W×H) 2765*2140*3000MM
Overall Weight 1950KG



China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)

China gasoline diesel 350L concrete mixer for sale with 10-14m3/h productivity (JZC350)



You may interested in other products:concrete vibrator,concrete power trowel
