Product Details:
Payment & Shipping Terms:
|
| Engine Type: | Electric Type 220V/380V,Honda GX160,Robin EH12 | Engine Power: | 2.2kw/3kw,4HP,5.5HP |
|---|---|---|---|
| Bounding Height: | 40-65mm | Impact Force: | 10-13KN |
| Plate Size: | 30*31cm |

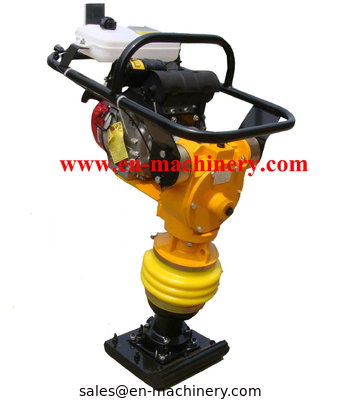

Jumping Jack Tamper Rammer Road Tamping Rammer Vibrating Tamping Rammers
Specification of the tamping rammer:
Engine: Original Honda,
GX100 3HP
Air-cooled 4-stroke
Petrol type: Unleaded gas only
Impact Frequency: 700/min
Forward Speed: 17m/min
Impact Force: 14kn
Base plate Size(L*W): 280*330 mm
Working Area: 260 square meters/h
Jumping Height: 65mm
Working Area: 260 square meters/h
System of Impacting: Manner of pressurized
Crankcase: 115# Alloy Aluminum
Manner of Startup: Recoil
Type of Lubricant: SAE10W-30
Weight: 72KG
Oil tank capacity: 2.2 L
|
|||||||||||||||||||||||||||||||||||||||||||||
*The engine from Japan designed for Gas powered rammer made by HONDA is well-anti-vibration with unleaded petrol namely 90# gas for fuel.
*The recoil manner is made for more easy startup under cold weather of 20 degree below zero.
*700 beats per minute
*The anti-rust fuel tank with automotive cleanse system and unique filter can operate longer with lower upkeep.
*Whole closing down and lubricated with oil impacting system makes the working without malfunction and quick start up on low temperature.
* Because of its long stroke, even tamping the clay soil, it also can make it perfect.
*Low center of gravity offers better operation for workers with more efficacy.
*soleplate cushion, wave-change pipe and arm absorber forming the three-grades anti-vibration protects the workers from injury during the long time working.
*Operation handrail with take-up is very easy for transportation and putting it into grooves
*CE certificated
