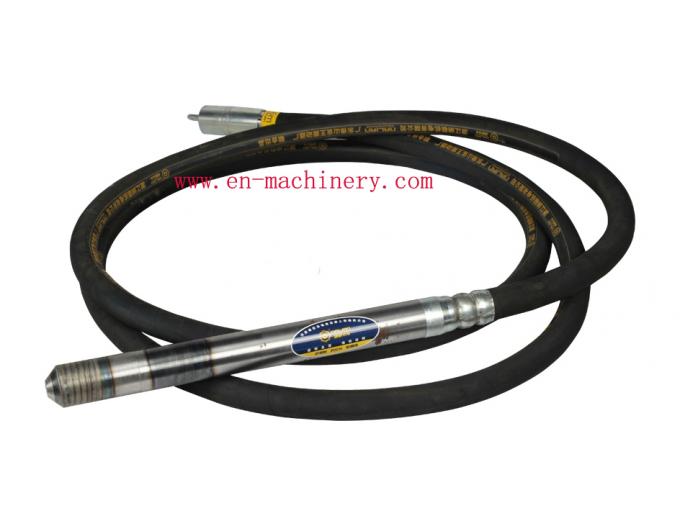

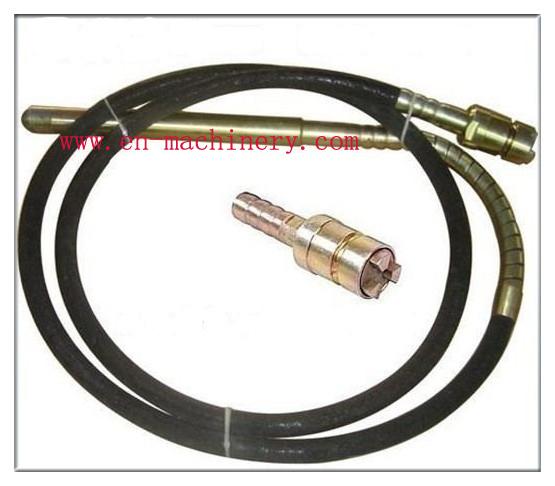

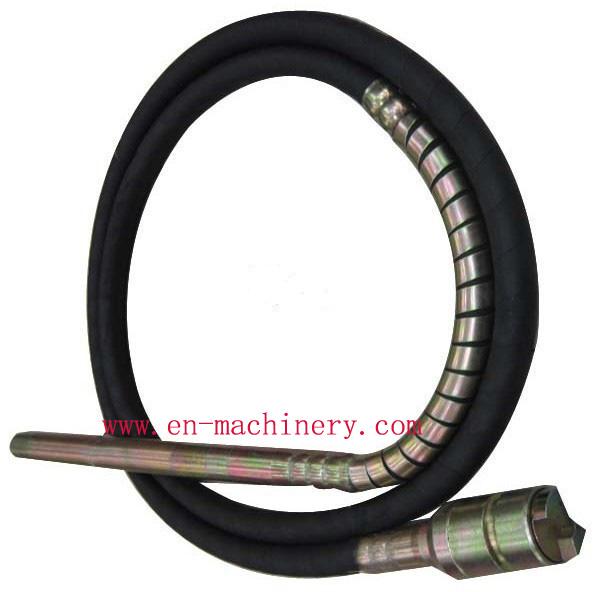

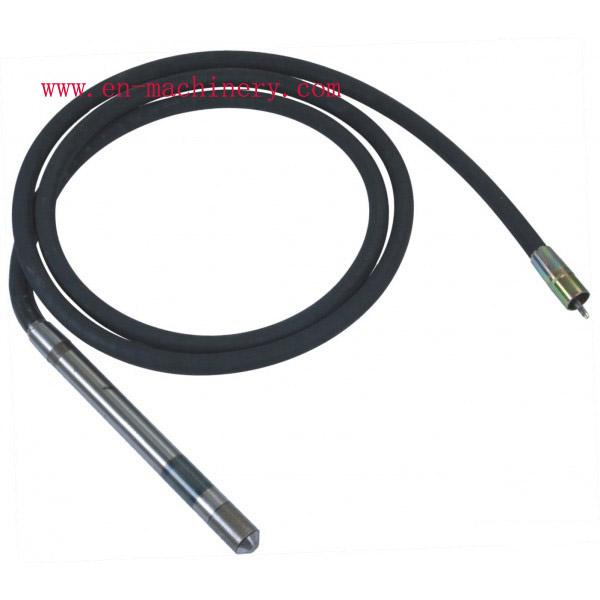

Japanese type 38mm,6mtrs Concrete Vibrator Shaft (hexagonal joint) with Vibrating hosefor concrete vibrator poker,needle
1.Japanese type vibrator shaft,
2,Korean type vibrator shaft ,
3.Dynapac type vibrator shaft,
4.Chinese type vibrator shaft,
different diameter concrete vibrator shaft with butterfly/Janpanese type, 25mm,28mm,32mm,38mm,40mm,45mm,50mm,60mm,70mm from 1m - 12m,even 16m length
concrete poker vibrator shaft
vibrator poker shafts
Electric motor concrete vibrator shaft
1) It is widely used in bridge,port construction,large dams,intensive reinforced concrete wall and other constructional engineer.
2) The shaft is driven by electronic concrete vibrator motor,gasoline concrete vibrator motor or diesel concrete vibrator motor.
3) Maximal working/set efficiency of swing type oscillating stick may reach 25CBM/hour. The motor rotation speed is 3600 rpm, and multi-point vibration speed may reach 12000rpm. It has the advantage of good mechanical performance, stable operation, low noise, good anti-wear performance, and reducing low working costs and labor load. It is widely applied in the world.
We are an expert manufacturer of concrete vibrators,the concrete could match flexible shafts and flexible tubes.
rich expertise and advanced manufacturing equipments ensures the reliable quality, which being sold to all over China and exported to many countries including Europe, Japan, Korea , and Malaysia etc.
| Model | ZN25 | ZN35 | ZN38 | ZN50 | ZN70 |
| Vibrating Head Diameter(mm) | 25 | 35 | 38 | 50 | 70 |
| Vibrating Frequency(Hz) | 220 | 200 | 200 | 200 | 200 |
| Vibrating Amplitude(mm) | 0.7 | 0.9 | 1.0 | 1.0 | 1.2 |
| Motor Speed(r/min) | 4000 | 4000 | 4000 | 4000 | 4000 |
| Length(m) | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |
| Weight(kg) | 6 | 9 | 11.5 | 12.5 | 14 |
| Model | JKV25 | JKV28 | JKV32 | JKV35 | JKV38 | JKV45 | JKV50 | JKV60 | JKV70 | | Dia. of vibrating head | 25mm | 28mm | 32mm | 35mm | 38mm | 45mm | 50mm | 60mm | 70mm | | Dia. of hose(outside) | 25mm | 25mm | 30mm | 30mm | 30mm | 30mm | 36mm | 36mm | 36mm | | Dia. of shaft | 8mm | 8mm | 10mm | 10mm | 10mm | 10mm | 13mm | 13mm | 13mm | | Total length | 1~6m | 1~6m | 4~8m | 1~8m | 4~8m | 4~10m | 4~12m | 4~12m | 4~12m | | Weight (6m) | 10kg | 10kg | 11kg | 12kg | 13kg | 15kg | 19kg | 23kg | 25kg | | Packing size (6m) | 77x66x5.5cm | 77x66x7cm | | Packing way | carton box | | Coupling type | Chinese type,Japanese type.Malaysian type,Australian type.etc. | | Hs Code | 8479909090 |
|
You may also interested in other products,mini concrete mixer,vibratory road roller
