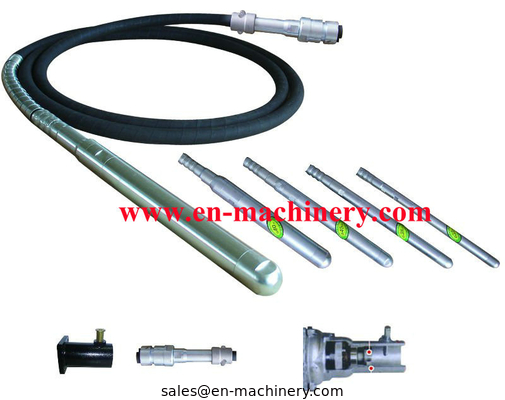

Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose

Good quality Mini Concrete Mixer for sales
I'm Online Chat Now

Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose

China Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier
Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose supplier

Large Image :  Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose

Product Details:

Place of Origin: Ningbo,China
Brand Name: YONGTUO
Certification: CE,SGS
Model Number: ZN

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: $5.00 per pc
Packaging Details: carton or up to the customers
Delivery Time: about 3 days
Payment Terms: TT or L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs/month
Contact Now
Detailed Product Description
Vibrating Frequency: 220-260HZ Vibrating Amplitude: 0.7-1.0mm
Length: 1m-12m Dia: 38mm
Weight Of Concrete Vibrator Shaft: 7 Kgs Overall Dimension: 1376*80*138mm

Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose





Concrete Vibrator Shaft
1Japanese, Dynapac, Chinese type are available;
2Gasoline, Diesel and electrica motor are available.

Concrete Vibrator Shaft

Functional Description:

 Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.



Main Features:



1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;

2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree

3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel

4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.

Each concrete vibrator shaft are strictly tested by our engineer before sealed in the bag or packed in the carton box. So our quality can be guaranteed.


Model No
ZX35
ZX45
ZX50
Diameter
35mm
45mm
60mm
Vibrating frequency
183Hz
183Hz
183Hz
Outside dia of flexibe hose
30mm
32mm
36mm
Inner dia of flexible shaft
10mm
12mm
13mm
Length
1m to 4m
1m to 12m
1m to 12m
Max. vibratioin force
4.846KN
5.932KN
6.704KN
Vibrating amplitude
1.11mm
1.2mm
1.28mm
Avaible motor or engine
electric motor, gasoline engine, diesel engine





Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose

Dynapac type needle pipe rod pin parts flexible shaft concrete vibrator hoseDynapac type needle pipe rod pin parts flexible shaft concrete vibrator hose



You may also interested in other products,mini concrete mixer,vibratory road roller
